What Is the Difference Between Cove Lighting and Soffit Lighting?

Struggling to decide between cove lighting and soffit lighting for your commercial project? With conflicting information and technical jargon everywhere, making the wrong choice could lead to wasted budget, inadequate illumination, or installation headaches that delay your entire project timeline.

Cove lighting is installed in ledges or recesses near the ceiling to direct light upward, creating soft ambient illumination and visual height. Soffit lighting is installed in horizontal underside areas (like under cabinets or ceiling protrusions) to direct light downward for task or accent illumination. Their different mounting positions and light direction create distinct aesthetic and functional effects.

In my 13+ years helping clients with commercial lighting¹ projects across Asia and the Middle East, I've seen firsthand how the right architectural lighting² transforms ordinary spaces into extraordinary experiences. Let me guide you through the key differences between these popular lighting methods to ensure your next project achieves both the visual impact and functional performance you need.

What Is Cove Lighting and How Does It Work?

Many architects and developers select lighting systems³ without fully understanding the underlying principles, resulting in installations that fail to deliver the intended effect or create unexpected challenges during construction.

Cove lighting⁴ is an architectural lighting² technique where light sources are hidden in ledges, recesses, or valances near the ceiling. The light is directed upward toward the ceiling and walls, creating indirect illumination⁵ that softens the entire room with diffused, shadow-free light while adding perceived height to the space.

Cove lighting⁴ has been a staple of architectural design for decades, but modern LED technology⁶ has revolutionized its application and effectiveness. When I consult with hotel and restaurant clients, I always explain that understanding cove lighting mechanics helps determine if it's suitable for their specific spaces.

The fundamental principle behind cove lighting is indirect illumination⁵. Unlike direct lighting fixtures that can create harsh shadows and uncomfortable glare, cove lighting bounces light off architectural surfaces to create a more even, diffused effect. This works through several key mechanisms:

Cove Lighting Mechanics and Implementation

In successful cove lighting installations I've managed, the architectural detail is critical. The cove should be designed with adequate depth (minimum 15-20cm) to conceal the light source completely and prevent direct visibility of the LEDs. This prevents the "beading" effect where individual light points are visible, creating an unprofessional appearance.

Ceiling height plays a crucial role in cove lighting effectiveness⁷. In my experience with various commercial spaces, cove lighting works best in rooms with ceiling heights of at least 2.7 meters (9 feet). In spaces with lower ceilings, specialized ultra-slim linear lights with their specialized optical lenses can still create effective cove lighting while minimizing installation depth requirements.

The light source positioning significantly impacts the final effect. For optimal results, I typically recommend positioning the light source 15-25cm from the ceiling. This distance creates an ideal light wash across the ceiling surface without obvious falloff patterns. Too close to the ceiling creates hotspots, while too far away loses efficiency and impact.

What Are the Disadvantages of Cove Lighting?

Many designers become enamored with the elegant appearance of cove lighting without considering the practical challenges, leading to budget surprises and project delays that could have been avoided with proper planning.

Cove lighting⁴'s main disadvantages include higher installation costs⁸ (typically 30-40% more than standard lighting), architectural modification requirements, maintenance challenges⁹ due to difficult fixture access, dust accumulation in coves that affects light quality, and the need for specialized dimming systems to maintain proper ambiance.

Through managing dozens of commercial lighting¹ projects, I've encountered several recurring challenges with cove lighting installations that prospective clients should consider before committing to this lighting approach.

Installation complexity represents one of the most significant disadvantages. Unlike standard lighting fixtures that can be surface-mounted, cove lighting requires specialized architectural details:

Cove Lighting Installation Challenges

Maintenance considerations often get overlooked in the design phase but become apparent over time. In a recent hotel project I managed, we had to design special access panels to allow for future LED strip replacement without damaging the decorative molding. Without this foresight, the entire cove would have required demolition for simple maintenance.

Cost implications extend beyond the initial installation. Based on my project data across various commercial installations, cove lighting typically increases lighting budgets by 30-40% compared to conventional direct lighting systems³. This includes:

1. Additional construction costs for creating the cove itself
2. Higher-quality LED systems needed for proper light distribution
3. More sophisticated control systems for proper dimming
4. Increased labor costs for precision installation
5. Higher maintenance costs throughout the system lifecycle

Dust accumulation in coves represents another ongoing challenge. In a retail mall installation I oversaw, light output decreased by approximately 15% after just one year due to dust buildup in the coves. We subsequently had to implement a regular cleaning schedule, adding to maintenance costs.

Despite these challenges, cove lighting remains popular in high-end commercial spaces because its aesthetic benefits¹⁰ often outweigh the disadvantages when properly planned and executed with quality components.

What Is Soffit Lighting (Cornice Lighting)?

Property developers and designers often confuse soffit lighting¹¹ with other architectural lighting² types, leading to miscommunication with contractors and unsatisfactory results that don't align with the project vision.

Soffit lighting (sometimes called cornice lighting) involves installing light fixtures in the horizontal underside of an architectural element such as an overhang, cabinet bottom, or ceiling protrusion. Unlike cove lighting, which directs light upward, soffit lighting¹¹ typically aims light downward to illuminate walls, countertops, or floor areas, providing controlled direct light for task or accent purposes.

In my work with commercial properties across Asia and the Middle East, I've implemented numerous soffit lighting¹¹g systems](https://www.tcpi.com/types-of-lighting-for-commercial-use/)[^3]. The term "soffit" refers specifically to the underside of an architectural element - essentially any horizontal surface that faces downward.

Cornice lighting (often used interchangeably with soffit lighting¹¹ in some regions) technically refers to lighting integrated into a decorative molding near the ceiling. This subtle distinction is important when communicating with international design teams to ensure everyone envisions the same installation approach.

Soffit lighting functions quite differently from cove lighting in several key aspects:

Soffit/Cornice Lighting Characteristics

The effectiveness of soffit lighting¹¹ largely depends on the distance between the light source and the illuminated surface. In my retail projects, we typically position soffit lights 30-60cm from the wall to create an optimal wall-washing effect without harsh spotlighting. This distance varies based on fixture output and beam angle but provides a good starting point for planning.

Soffit lighting offers excellent versatility across different commercial environments. In a recent shopping center project, we used soffit lighting¹¹ in multiple ways throughout the space:

1. Under overhangs at store entrances to highlight window displays
2. Beneath architectural ceiling drops to define circulation paths
3. In food court areas to provide pleasant task lighting¹² at tables
4. Along exterior soffits to improve safety and visibility at night

The control requirements for soffit lighting¹¹ differ from cove systems. Since soffit lighting¹¹ often serves practical purposes beyond aesthetics, zoning controls that allow separate adjustment of different areas become more important. In hotel projects, I typically implement scene-setting capabilities that adjust soffit lighting¹¹ based on time of day and occupancy patterns.

Cove Lighting vs. Valance and Soffit Lighting: What's the Difference?

The technical distinctions between architectural lighting² types often lead to confusion during specification and installation, resulting in inappropriate lighting solutions that fail to achieve design objectives or meet functional requirements.

The key differences lie in mounting position and light direction: cove lighting is mounted in recesses near the ceiling, directing light upward for ambient illumination; valance lighting¹³ is mounted on walls in horizontal shields, directing light both up and down for balanced distribution; and soffit lighting¹¹ is mounted under horizontal surfaces, directing light downward for task or accent purposes.

Through implementing numerous lighting projects across different commercial settings, I've developed a clear framework for distinguishing between these lighting approaches. Understanding these differences is crucial for achieving the intended design outcome.

The mounting position fundamentally determines how light interacts with the space:

Comparative Analysis of Architectural Lighting Types

The resulting atmosphere varies significantly with each approach. In a luxury hotel project I managed, we used different techniques in various spaces:

1. Cove lighting⁴ in the main lobby created an expansive, welcoming atmosphere
2. Valance lighting in corridor transitions provided wayfinding while highlighting artwork
3. Soffit lighting in reception desk areas delivered functional task lighting¹²
4. Cornice lighting in the heritage wing accentuated original architectural details

The light distribution pattern creates distinct visual experiences. Cove lighting⁴ produces a soft gradient on the ceiling with minimal direct glare. Valance lighting creates balanced illumination on both upper and lower wall sections. Soffit lighting produces more defined pools of light with clearer boundaries.

Energy efficiency also varies between these approaches. In my experience managing large commercial properties, cove lighting typically requires 30-40% more power than soffit lighting¹¹ to achieve comparable illumination levels because much of the light is lost in the reflection process. This efficiency difference should factor into sustainability considerations for projects with strict energy requirements.

Control strategies must be tailored to each lighting type. Cove lighting⁴ benefits from slow fade times and smooth dimming capability to prevent noticeable transitions. Soffit lighting, particularly when used for task purposes, may require more responsive controls and higher minimum light levels to maintain functionality.

When Should You Use Cove Lighting in Commercial Projects?

Many commercial projects¹⁴ implement inappropriate lighting solutions because designers choose based on trends rather than specific project needs, resulting in spaces that look impressive but function poorly for their intended purpose.

*Cove lighting⁴ works best in commercial projects¹⁴ where creating atmosphere takes priority over task functionality, including luxury hotel lobbies and restaurants, high-end retail environments with emphasis on brand experience, executive offices and boardrooms requiring sophisticated ambiance, and spaces with architectural features worth highlighting through indirect illumination⁵.

Having implemented lighting for numerous commercial facilities across different sectors, I've identified specific scenarios where cove lighting delivers exceptional results and others where alternative approaches would be more appropriate.

The decision to use cove lighting should be driven by both aesthetic goals and practical considerations:

Commercial Cove Lighting Application Guide

Ceiling height fundamentally determines cove lighting effectiveness. In my experience with shopping center renovations, spaces with ceilings below 2.7 meters rarely achieve the desired effect with traditional cove lighting. In these cases, alternative approaches such as wall-washing or specialized shallow cove designs must be considered.

Budget considerations also influence the decision. Based on project data I've collected across various commercial installations, implement costs for cove lighting typically range between $150-300 per linear meter when including construction, fixtures, and controls. This represents a premium of approximately 40-60% over standard direct lighting solutions.

The building's structural system impacts implementation feasibility. In a recent office project, we discovered that the concrete slab ceiling design would have required extensive modifications to accommodate traditional cove lighting. Instead, we developed a suspended system that created the visual effect of architectural coves without structural changes, saving approximately 30% in construction costs.

Maintenance accessibility also influences the decision. For shopping centers and other facilities with limited maintenance windows, I generally recommend cove systems with front-accessible components that don't require ceiling access. This increases initial costs by 15-20% but reduces long-term maintenance expenses significantly.

Why Soffit Lighting is Ideal for Task and Ambient Lighting?

Inadequate task lighting leads to eye strain, reduced productivity, and safety hazards in commercial environments. Many projects fail to distinguish between decorative lighting and functional illumination needs, resulting in beautiful but impractical spaces.

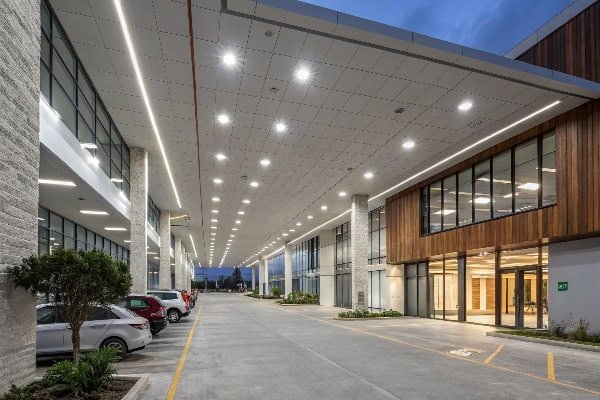

Soffit lighting excels for task applications because it directs light precisely where needed without glare, provides appropriate illumination levels for detail work (typically 300-500 lux), can be positioned closer to work surfaces for maximum efficiency, and creates visual definition of functional areas while still contributing to overall ambient light levels.

Through my work on retail and hospitality projects across diverse environments, I've found that soffit lighting provides an optimal balance between functionality and aesthetics for many commercial applications.

The directional nature of soffit lighting makes it particularly effective for task-oriented environments:

Task-Oriented Soffit Lighting Applications

The controllability of soffit lighting provides significant advantages in commercial environments. In a recent hotel corridor project, we implemented soffit lighting with programmable controls that adjusted color temperature throughout the day—cooler whites during morning hours for alertness, and warmer tones in evening hours to create a relaxing atmosphere. This dynamic lighting improved guest experiences while maintaining necessary visibility for safety.

At Besenled, we've developed specialized linear LED solutions specifically for soffit applications. Our ultra-slim linear fixtures (just 12mm in profile) can be discreetly integrated into even the most minimal architectural soffits. The precision optics in these fixtures deliver controlled beam angles (from 15° spot to 120° flood) that prevent light spillage while maximizing illumination on target surfaces.

Energy efficiency represents another key advantage of soffit lighting. Since the light source is positioned closer to the illuminated surface, less power is required to achieve target illumination levels. In a comparison study of a retail project, we found that properly designed soffit lighting used approximately 30% less energy than equivalent cove lighting while delivering superior task illumination.

For commercial facilities with complex architectural layouts, soffit lighting offers tremendous flexibility. In a mixed-use development project in the Middle East, we deployed multiple soffit lighting approaches within the same connected spaces:

1. Wall-wash soffit fixtures to highlight textured architectural finishes
2. Grid-pattern soffit downlights to create defined circulation paths
3. Linear soffit systems to provide consistent illumination along corridor walls
4. Accent soffit lighting with adjustable fixtures to highlight artwork

The hybrid nature of soffit lighting—simultaneously providing task functionality while contributing to ambient light levels—makes it particularly valuable in environments where multiple lighting needs must be satisfied without visual clutter or excessive fixture counts.

What LED Products Work Best for Cove and Soffit Lighting?

Selecting inappropriate LED products for architectural lighting applications often leads to disappointing visual results, premature system failure, and costly retrofits that could have been avoided with proper product selection.

The most effective LED products for architectural lighting applications include high-CRI linear strips (90+ CRI for accurate color rendering), properly lensed linear fixtures (with optical diffusers to prevent visible diodes), color-consistent solutions (maximum 2-step MacAdam ellipse for uniform appearance), professional-grade drivers (with smooth dimming to at least 1%), and products with proven heat management for extended lifespan.

With the market flooded with LED options, choosing the right product significantly impacts both installation success and long-term performance. Through extensive product testing and field experience, I've identified key criteria that distinguish professional-grade architectural lighting products from inferior alternatives.

LED Product Selection Matrix for Architectural Applications

For cove lighting applications, light quality and consistency become particularly important since the light washes across large visible surfaces. In a luxury hotel renovation project, we initially tested multiple LED strip options and found significant visual differences despite similar specifications. The strips with superior binning (2-step MacAdam ellipse) produced noticeably more uniform illumination across extended ceiling runs.

For soffit applications, optical control becomes the primary consideration. In a recent commercial office project, we selected linear fixtures with specialized asymmetric lenses that directed light precisely onto vertical surfaces without spilling into the workspace below. This approach eliminated glare issues while reducing energy consumption by approximately 20% compared to standard diffused products.

Dimming capability represents an essential consideration for both applications. In our testing, many budget LED products claimed dimming compatibility but exhibited significant flicker below 20% output and dropped out entirely below 10%. For high-end commercial environments, we exclusively specify products with smooth, flicker-free performance to at least 1% output level.

Power supply selection significantly impacts system reliability. In a large-scale retail project, upgrading from basic LED drivers to constant-current, programmable units reduced callback rates by nearly 70%. The premium drivers cost approximately 25% more but delivered substantial long-term savings through reduced maintenance requirements.

For projects with extensive runs, voltage drop must be carefully calculated to prevent visible brightness variations. In our custom installation guidelines, we specify maximum run lengths based on power supply placement:

1. 12V systems: Maximum 5 meters (16 feet) per power feed
2. 24V systems: Maximum 10 meters (33 feet) per power feed
3. 48V systems: Maximum 20 meters (66 feet) per power feed

These guidelines help ensure uniform brightness along the entire installation while minimizing the number of power supplies required.

Conclusion

The difference between cove and soffit lighting is fundamentally about direction and purpose: cove lighting directs illumination upward for ambient effects while soffit lighting aims downward for task and accent purposes. Choosing the right approach depends on your specific commercial needs, architectural constraints, and desired atmosphere. By understanding these distinctions, you can create lighting solutions that enhance both functionality and aesthetic appeal in your commercial spaces.
