LED Panel Lights

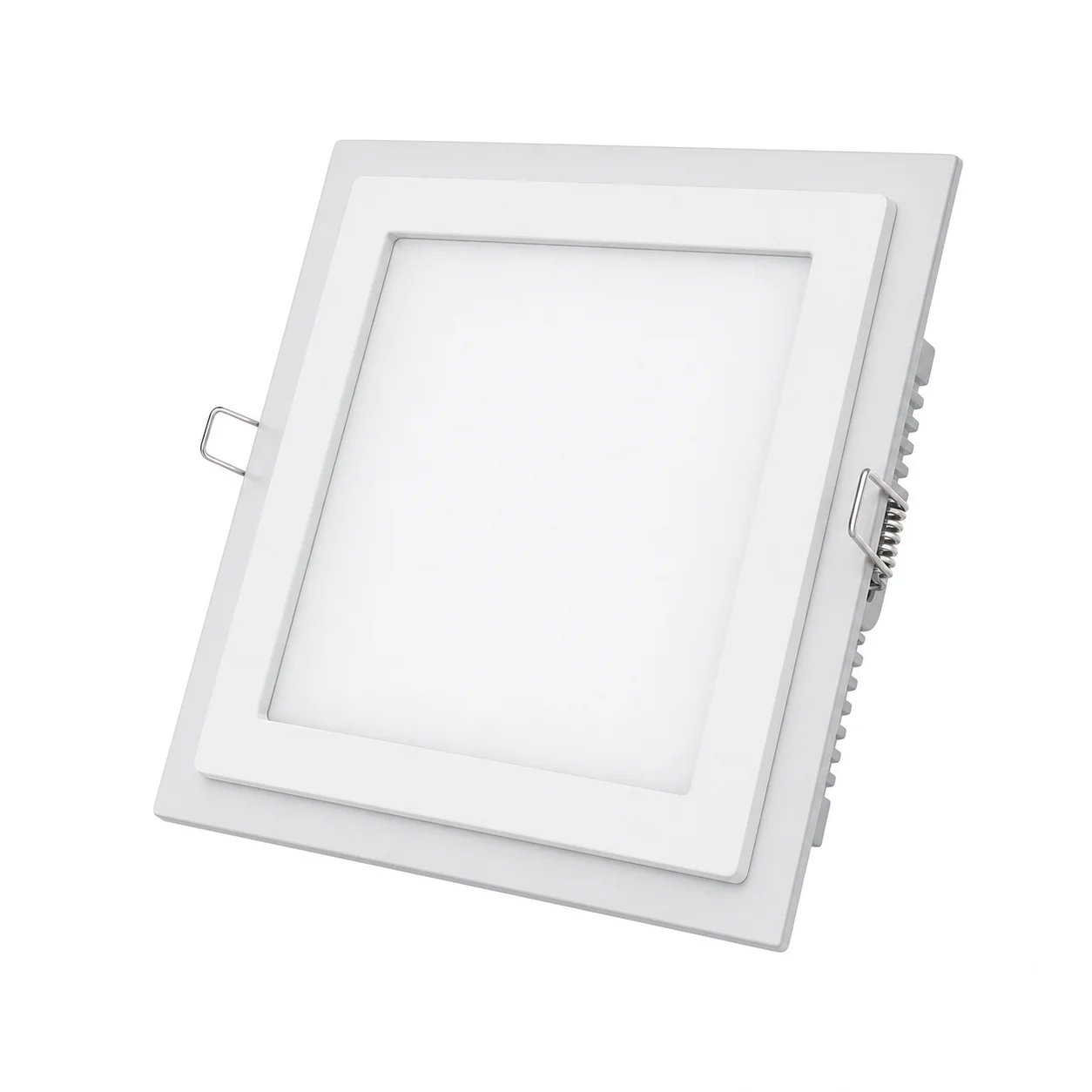

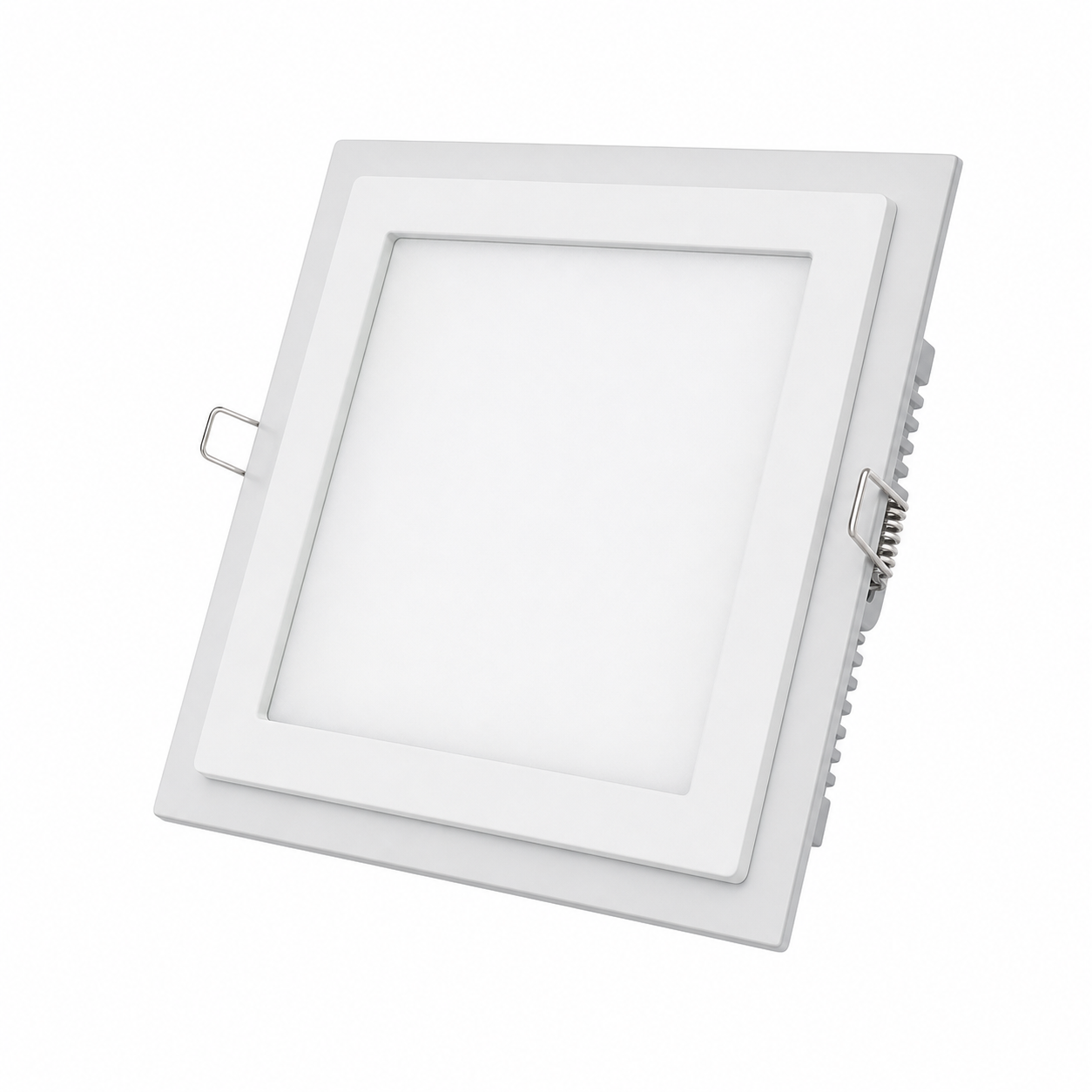

Square Recessed LED Panel Light Series
Which square recessed LED panel light size, wattage and control method should a commercial project specify?
Use this square recessed panel series when the project needs a clean ceiling panel light family. Select by wattage, size, cutout/mounting method, CCT, dimming driver and target certification market; smart control protocols must be confirmed by driver and control module.
- Power
- 3W to 24W by variant
- Input
- Driver-dependent; confirm AC input and DC output by selected driver
- Efficacy
- 80 lm/W reference
- CCT
- 3 temperature colors by switch available; exact 3000K/4000K/6500K style options need confirmation by SKU
- CRI
- Confirm for selected configuration
- Protection
- Confirm for selected configuration
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Series page groups variants by shape and mounting instead of creating one page per SKU.
- Catalogue page lists die-casting aluminium, SMD2835, 80 lm/W reference, >=25,000h lifespan and CE/RoHS reference.
- 3 temperature colors by switch and dimmable options are available by configuration; exact driver protocol needs confirmation.
- RFQ should include size, wattage, CCT, dimming/control method, quantity and target market certification.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Office ceiling lighting Relevant use case for this product family; confirm final model selection by project requirements.
- Retail and hospitality ceiling lighting Relevant use case for this product family; confirm final model selection by project requirements.
- Corridor and public-area lighting Relevant use case for this product family; confirm final model selection by project requirements.
- Projects needing simple panel-light family selection Relevant use case for this product family; confirm final model selection by project requirements.
Confirm another option when
- Outdoor wet locations unless IP rating is confirmed Not the best fit unless exact rating, driver, environment and installation conditions are confirmed.
- High-bay industrial environments Not the best fit unless exact rating, driver, environment and installation conditions are confirmed.
- Projects requiring guaranteed smart protocol before driver confirmation Not the best fit unless exact rating, driver, environment and installation conditions are confirmed.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- Driver-dependent; confirm AC input and DC output by selected driver
- Power range
- 3W to 24W by variant
- Driver / control
- Standard switchable CCT/dimming references are catalogue-based. Smart protocols require confirmed driver, control module, gateway and wiring design.
Optical
- Efficacy
- 80 lm/W reference
- Lumen output
- Catalogue table uses luminous flux/lux values by model; verify final lumen output before quotation
- CRI options
- Confirm for selected configuration
- CCT options
- 3 temperature colors by switch available; exact 3000K/4000K/6500K style options need confirmation by SKU
- Beam angle
- wide panel distribution; exact angle needs_confirmation
Mechanical
- Dimensions
- 90*90*25mm; 110*110*25mm; 120*120*25mm; 150*150*25mm; 172*172*25mm; ...
- Materials
- Die-casting aluminium
- IP rating
- Confirm for selected configuration
- Mounting
- Recessed
- Installation notes
- Confirm ceiling cutout for recessed models; confirm surface box/driver space for surface models.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| BS-2835-PF03 | 3W | 90*90*25mm; cutout: 75*75mm; led_qty: 15pcs | 3 temperature colors by switch available; exact CCT needs_confirmation | Confirm for selected configuration | >=165 lux | >=25,000h |
| BS-2835-PF04 | 4W | 110*110*25mm; cutout: 100*100mm; led_qty: 20pcs | 3 temperature colors by switch available; exact CCT needs_confirmation | Confirm for selected configuration | >=250 lux | >=25,000h |
| BS-2835-PF06 | 6W | 120*120*25mm; cutout: 110*110mm; led_qty: 30pcs | 3 temperature colors by switch available; exact CCT needs_confirmation | Confirm for selected configuration | >=430 lux | >=25,000h |
| BS-2835-PF09 | 9W | 150*150*25mm; cutout: 140*140mm; led_qty: 45pcs | 3 temperature colors by switch available; exact CCT needs_confirmation | Confirm for selected configuration | >=650 lux | >=25,000h |
| BS-2835-PF12 | 12W | 172*172*25mm; cutout: 160*160mm; led_qty: 60pcs | 3 temperature colors by switch available; exact CCT needs_confirmation | Confirm for selected configuration | >=890 lux | >=25,000h |
| BS-2835-PF15 | 15W | 192*192*25mm; cutout: 180*180mm; led_qty: 75pcs | 3 temperature colors by switch available; exact CCT needs_confirmation | Confirm for selected configuration | >=1180 lux | >=25,000h |
| BS-2835-PF18 | 18W | 225*225*25mm; cutout: 210*210mm; led_qty: 90pcs | 3 temperature colors by switch available; exact CCT needs_confirmation | Confirm for selected configuration | >=1580 lux | >=25,000h |
| BS-2835-PF24 | 24W | 300*300*25mm; cutout: 280*280mm; led_qty: 120pcs | 3 temperature colors by switch available; exact CCT needs_confirmation | Confirm for selected configuration | >=1800 lux | >=25,000h |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Installation | Recessed / cutout installation | cutout values listed by variant catalog page 4 |
| LED type | SMD2835 | catalogue feature list catalog page 4 |
| Housing material | Die-casting aluminium | catalogue feature list catalog page 4 |
| Optical note | High brightness and uniformity | catalogue feature list catalog page 4 |
| Luminous efficacy | 80 lm/W | catalogue feature list; final model-specific value needs confirmation catalog page 4 |
| Lifespan | >=25,000 hours | catalogue feature list catalog page 4 |
| CCT options | 3 temperature colors by switch available | catalogue feature list catalog page 4 |
| Dimming | Dimmable available | driver/control module dependent catalog page 4 |
| Control compatibility | Zigbee, Bluetooth Mesh, 0-10V, DALI/DALI-2, DMX512, Triac, Tuya, Casambi, KNX/BMS, Matter/overseas systems can be reviewed | project-dependent; needs_confirmation catalog page 4 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
Control compatibility is project-dependent. Zigbee, Bluetooth/Bluetooth Mesh, 0-10V, DALI/DALI-2, DMX512, Triac/phase-cut, Tuya/Smart Life, Casambi, KNX/BMS and Matter/overseas smart-home systems can be reviewed when the driver, control module, gateway, voltage and certification market are confirmed. Do not treat every protocol as standard for every SKU.
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Panel light family and variants were extracted from Besen-panel light catalogue 2025 pages. catalogue
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Confirm for selected configuration
- Sample policy
- Confirm for selected configuration
- Sample lead time
- Confirm for selected configuration
- International lead time
- Confirm for selected configuration
- Warranty
- Confirm for selected configuration
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Shape and mounting typeNeeded to confirm the correct model, driver/control configuration and quotation.
- 2 Wattage and sizeNeeded to confirm the correct model, driver/control configuration and quotation.
- 3 Recessed cutout if applicableNeeded to confirm the correct model, driver/control configuration and quotation.
- 4 CCT or 3-color switch requirementNeeded to confirm the correct model, driver/control configuration and quotation.
- 5 Dimming/control protocol and driver typeNeeded to confirm the correct model, driver/control configuration and quotation.
- 6 Customer gateway/BMS/smart-home system if requiredNeeded to confirm the correct model, driver/control configuration and quotation.
- 7 Target certification marketNeeded to confirm the correct model, driver/control configuration and quotation.
- 8 Quantity and packaging requirementNeeded to confirm the correct model, driver/control configuration and quotation.
Buyer questions
FAQ and source notes
- Last fact checked
- July 31, 2026
Are all smart control protocols standard for this panel light?
No. Control compatibility is project-dependent and must be confirmed by driver, control module, gateway, voltage and target certification market.
What should be confirmed before quotation?
Confirm wattage, size, mounting/cutout, CCT, dimming method, control protocol, quantity, packaging and certification market.
Can this panel light support overseas smart-home systems?
Customer-specified overseas systems can be reviewed after the customer provides protocol, gateway/controller model, driver requirements, voltage, dimming method and certification market.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
