Magic Color Strip
How should Magic Color Strip be specified for a commercial or architectural lighting project?
An addressable 5050 digital strip family using IC-controlled pixels for programmed color effects. Catalogue examples use 5V, 12V or 24V and IC families such as 2811/1903, 2812/6812, 2904 and 16704; controller and addressing compatibility must be confirmed.
- Power
- catalog variants approximately 7.2-42 W/m maximum
- Input
- DC5V / DC12V / DC24V by variant
- Efficacy
- not the primary selection metric for pixel effects
- CCT
- RGB or RGBW digital variants
- CRI
- n/a for RGB; RGBW white channel needs_confirmation
- Protection
- project-dependent IP process
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Select the exact variant by voltage, LED/color architecture, density, PCB width, cut length, output, IP process and installation system.
- Control and smart-system support is project-dependent and must be confirmed against the selected driver/controller/gateway.
- Use the current exact-model datasheet, sample and certificate coverage—not a series-level marketing statement—as final project evidence.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Commercial cove and linear accent lighting addressable digital strip can be selected as part of a strip, profile, driver and control system.
- Project-specific OEM/ODM requirements Length, PCB, color, IP process, connector and packaging options can be reviewed during RFQ.
- Signage, entertainment and programmed visual effects Pixel addressing supports animated color sequences when paired with the correct controller and data topology.
Confirm another option when
- Final specification without an approved exact-model datasheet Series-level information does not replace the confirmed SKU, test report or engineering drawing.
- Long runs without voltage-drop and thermal review Run length, cable, power supply, profile and operating temperature affect performance and reliability.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- DC5V / DC12V / DC24V by variant
- Power range
- catalog variants approximately 7.2-42 W/m maximum
- Driver / control
- Can be configured for project-dependent dimming or smart control after compatibility review. Confirm the selected driver/controller, voltage, load, channel count, wiring, gateway, commissioning responsibility and destination market. Customer-specified overseas systems may be reviewed; support is not standard on every variant. Addressable products additionally require matching IC, data signal, pixel count, controller and power-injection plan.
Optical
- Efficacy
- not the primary selection metric for pixel effects
- Lumen output
- catalog examples approximately 160-790 lm/m depending on density and IC
- CRI options
- n/a for RGB; RGBW white channel needs_confirmation
- CCT options
- RGB or RGBW digital variants
- Beam angle
- Confirm for selected configuration
Mechanical
- Dimensions
- 10 mm or 12 mm PCB in listed digital variants
- Materials
- Flexible PCB with SMD 5050 LEDs and integrated control IC
- IP rating
- project-dependent IP process
- Mounting
- Adhesive or aluminum profile
- Installation notes
- Confirm data direction, signal distance, controller capacity, common ground, power injection, addressing and IP termination.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|

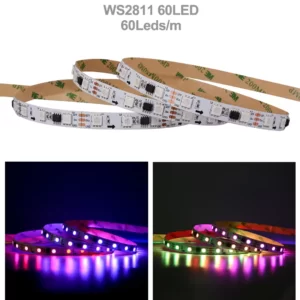

| 5050-60-RGB-2811/1903-12V/24V-10MM | 14.4 W/m max | 10 mm PCB; 60 LEDs/m; 50/100 mm cut length | RGB digital | n/a | 325 lm/m catalogue value | Confirm for selected configuration |
| 5050-60-RGB-2812/6812-5V-10MM | 18 W/m max | 10 mm PCB; 60 LEDs/m; one LED per cut | RGB digital | n/a | 325 lm/m catalogue value | Confirm for selected configuration |

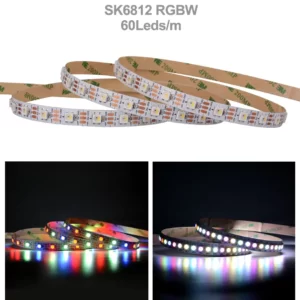

| 5050-60-RGBW-2904-24V-12MM | 14.4 W/m max | 12 mm PCB; 60 LEDs/m | RGBW digital | white channel needs_confirmation | 325 lm/m catalogue value | Confirm for selected configuration |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| IC families | 2811/1903, 2812/6812, 2904 and 16704 are shown | exact protocol/controller match required catalog PDF pages 33-34 |
| Voltage | DC5V / DC12V / DC24V depending on IC and variant | variant-dependent catalog PDF pages 33-34 |
| PWM/brightness | Catalogue states PWM control with 256 brightness grades | confirm controller implementation catalog PDF pages 33-34 |
| Cascade points | Catalogue states up to 1024 cascade points | confirm practical controller/data limits catalog PDF pages 33-34 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
Can be configured for project-dependent dimming or smart control after compatibility review. Confirm the selected driver/controller, voltage, load, channel count, wiring, gateway, commissioning responsibility and destination market. Customer-specified overseas systems may be reviewed; support is not standard on every variant.
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Listed catalogue variants and values were transcribed from the 2025 Besenled LED strip and neon catalogue. catalogue
- Migrated WooCommerce wording is treated as a claim ledger and not as final test evidence where it lacks an exact-model source. methodology
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
- MOQ
- Project-dependent; confirm by exact variant, quantity and customization scope.
- Sample policy
- Sample can be quoted after voltage, color/CCT, PCB, IP process, driver/controller and accessory requirements are confirmed.
- Sample lead time
- Confirm for selected configuration
- International lead time
- Confirm for selected configuration
- Warranty
- Project- and model-dependent; confirm in the quotation and approved datasheet.
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Voltage, color/CCT, CRI and target outputNeeded to select the strip family and exact variant.
- 2 LED density, PCB width, cut length and run lengthNeeded for dimensions, power calculation, voltage drop and accessory matching.
- 3 IP process, profile and installation environmentNeeded for heat dissipation, sealing and mounting selection.
- 4 Driver, controller and smart-system requirementNeeded to review dimming, channel, gateway, wiring and protocol compatibility.
- 5 Quantity, destination market, documents and target dateNeeded to confirm MOQ, sample, compliance scope, packaging and lead time.
Buyer questions
FAQ and source notes
- Last fact checked
- August 5, 2026
How should Magic Color Strip be specified?
Start with application, voltage, color/CCT, LED density, output, PCB width, cut length, IP process, profile, driver/controller and destination-market requirements. Then confirm the exact model and sample.
Are all control protocols supported as standard?
No. DALI/DALI-2, 0-10V, Zigbee, Bluetooth Mesh, DMX512, phase-cut, Tuya, Casambi, KNX/BMS or a customer-specified ecosystem require a compatible driver/controller/gateway and project review.
What evidence should be approved before ordering?
Approve the exact-model datasheet, dimensions, electrical load, sample, applicable certificate coverage, control compatibility and packaging requirement.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
