Street Light

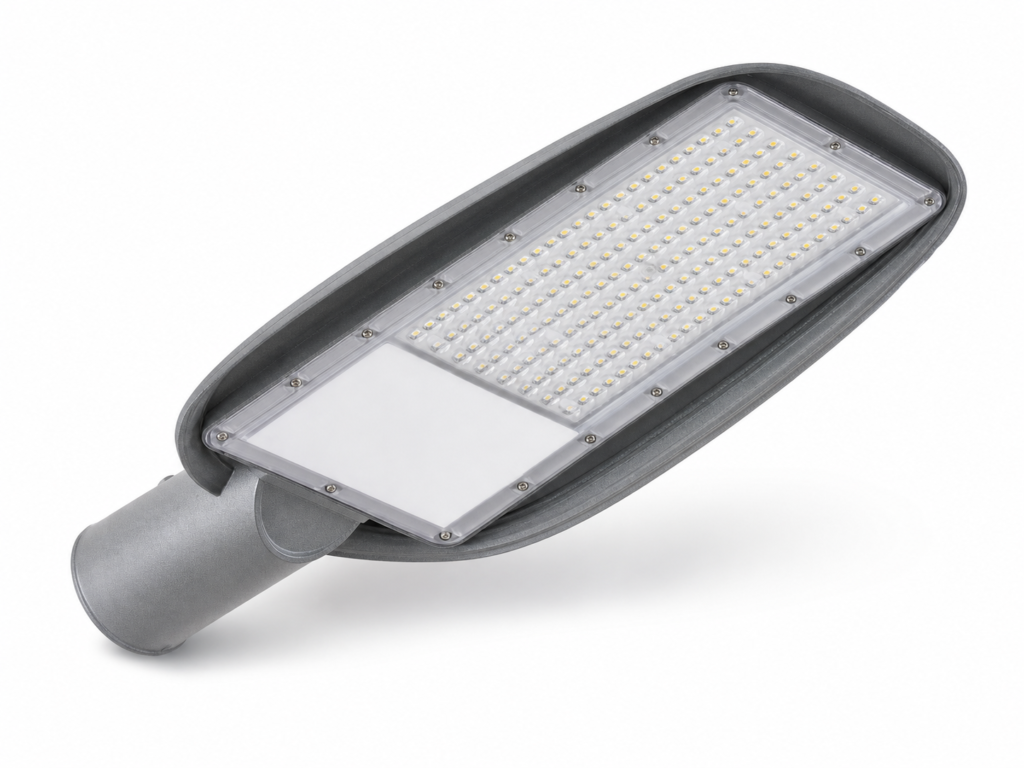

EGO LED Street Light
Is EGO suitable for standard 50W-200W street lighting?
EGO is a 50W-200W LED street light family using LUMILEDS LEDs, ZH driver, 140lm/W efficacy, IP66 protection and photocell/timer options.
- Power
- 50W-200W
- Input
- AC100-277V; 50/60Hz
- Efficacy
- 140LM/W (±5%)
- CCT
- 3000K/4000K/5000K/5700K/6500K
- CRI
- Ra>80 (70,90 optional)
- Protection
- IP66
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- 50W-200W LED street light series with IP66/IK08 protection and 70*140° distribution.
- Catalog range: 50W-200W with 140LM/W (±5%) efficacy.
- Outdoor protection: IP66 / IK08.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Standard street lighting Catalog-extracted buyer-fit statement; verify against final project requirements.
- Outdoor roads and access areas Catalog-extracted buyer-fit statement; verify against final project requirements.
Confirm another option when
- High-output street light projects above 200W Use a different product family or confirm project requirements before specification.
- Solar street light projects Use a different product family or confirm project requirements before specification.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- AC100-277V; 50/60Hz
- Power range
- 50W-200W
- Driver / control
- ZH
Optical
- Efficacy
- 140LM/W (±5%)
- Lumen output
- Confirm for selected configuration
- CRI options
- Ra>80 (70,90 optional)
- CCT options
- 3000K/4000K/5000K/5700K/6500K
- Beam angle
- 70*140°
Mechanical
- Dimensions
- 390*160*75mm; 470*200*75mm; 530*220*75mm; 600*250*75mm
- Materials
- Confirm for selected configuration
- IP rating
- IP66
- Mounting
- pole / arm mounting; confirm exact mounting by SKU
- Installation notes
- Confirm pole height, arm diameter, tilt angle and distribution before project specification.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| EGO-50W | 50W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| EGO-A-100W | 100W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| EGO-A-150W | 150W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| EGO-A-200W | 200W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Power range | 50W-200W W | Catalog Extracted PDF page(s): 72 |
| Model variants | EGO-50W, EGO-A-100W, EGO-A-150W, EGO-A-200W | Catalog Extracted PDF page(s): 72 |
| Input voltage | AC100-277V; 50/60Hz | Catalog Extracted PDF page(s): 72 |
| Luminous efficacy | 140LM/W (±5%) lm/W | Catalog Extracted PDF page(s): 72 |
| LED brand | LUMILEDS | Catalog Extracted PDF page(s): 72 |
| Driver brand | ZH | Catalog Extracted PDF page(s): 72 |
| CCT | 3000K/4000K/5000K/5700K/6500K K | Catalog Extracted PDF page(s): 72 |
| CRI | Ra>80 (70,90 optional) | Catalog Extracted PDF page(s): 72 |
| Power factor | 0.95 | Catalog Extracted PDF page(s): 72 |
| Beam angle / distribution | 70*140° | Catalog Extracted PDF page(s): 72 |
| IP rating | IP66 | Catalog Extracted PDF page(s): 72 |
| IK rating | IK08 | Catalog Extracted PDF page(s): 72 |
| Lifespan | 50,000Hrs | Catalog Extracted PDF page(s): 72 |
| Working temperature | -35°C to +50°C | Catalog Extracted PDF page(s): 72 |
| Warranty | 3 or 5 Years | Catalog Extracted PDF page(s): 72 |
| Certification | CQC/CB/CE/SAA/FCC/RoHS | Catalog Extracted PDF page(s): 72 |
| Control options | Photocell, Timer | Catalog Extracted PDF page(s): 72 |
| Dimensions | 390*160*75mm; 470*200*75mm; 530*220*75mm; 600*250*75mm | Catalog Extracted PDF page(s): 72 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
Photocell, Timer
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Technical specifications extracted from catalogue street light section. datasheet
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Confirm for selected configuration
- Sample policy
- Confirm for selected configuration
- Sample lead time
- Confirm for selected configuration
- International lead time
- Confirm for selected configuration
- Warranty
- 3 or 5 Years
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Road widthNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 2 Pole heightNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 3 Pole distanceNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 4 Mounting arm sizeNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 5 QuantityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 6 Input voltage or solar requirementNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 7 CCTNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 8 Control methodNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 9 IP/IK or certification marketNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 10 Drawing or site photo if availableNeeded to confirm product selection, quotation, photometric fit or project configuration.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Is EGO suitable for standard 50W-200W street lighting?
EGO is a 50W-200W LED street light family using LUMILEDS LEDs, ZH driver, 140lm/W efficacy, IP66 protection and photocell/timer options.
What specifications should buyers confirm before ordering EGO LED Street Light?
Confirm wattage, voltage, beam distribution, CCT/CRI, IP/IK requirement, mounting condition, control method, certification market, quantity and required documents before RFQ.
Which evidence is still needed for EGO LED Street Light?
Final datasheet, applicable certificates by market, IES/LDT photometric files and selected SKU details should be checked before using the page as a final specification reference.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
