Street Light

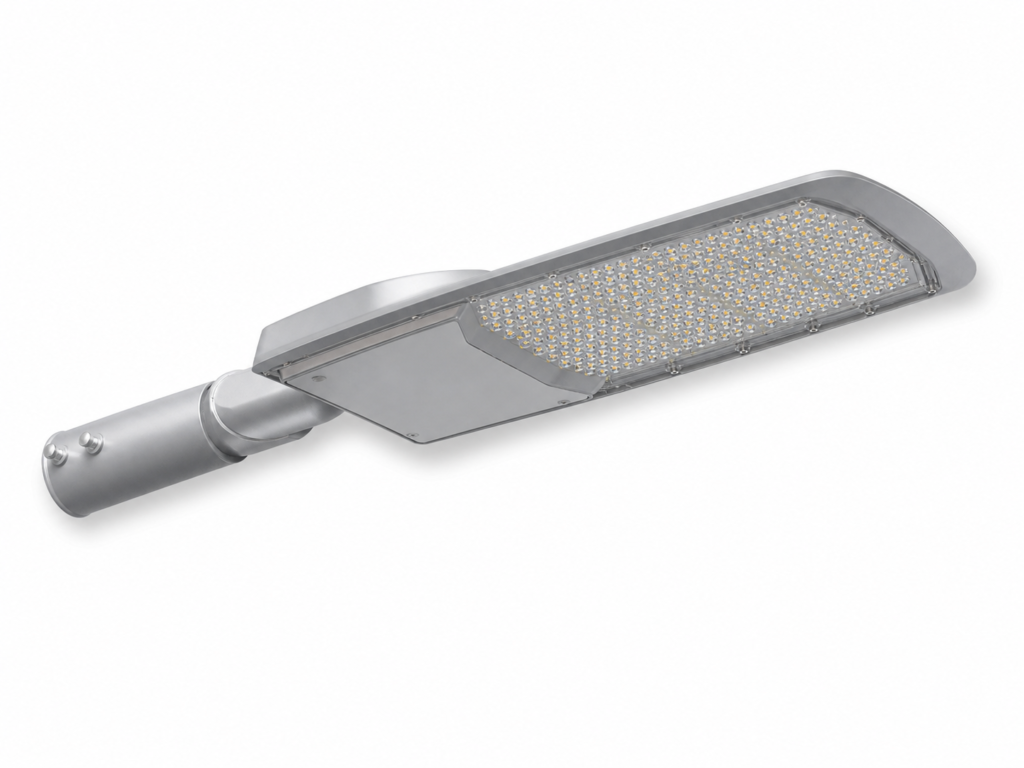

BS-SLE630-B LED Street Light
Is BS-SLE630-B suitable when street light power or CCT must be adjustable?
BS-SLE630-B fits projects needing 50W-200W street lights with 3CCT and power adjustment, 70*140° distribution, IP66/IK08 protection and NEMA/ZHAGA accessory options.
- Power
- 50W-200W, adjustable steps listed: 50/40/30W, 100/80/60W, 150/120/90W, 200/160/120W
- Input
- AC100-277V; 50/60Hz
- Efficacy
- 140LM/W (±5%)
- CCT
- 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; listed selectable 4000K/5000K/5700K
- CRI
- Ra>80 (70,90 optional)
- Protection
- IP66
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Configurable LED street light with 3CCT, power adjustment, IP66 protection and NEMA/ZHAGA accessory options.
- Catalog range: 50W-200W, adjustable steps listed: 50/40/30W, 100/80/60W, 150/120/90W, 200/160/120W with 140LM/W (±5%) efficacy.
- Outdoor protection: IP66 / IK08.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Projects requiring field-selectable wattage Catalog-extracted buyer-fit statement; verify against final project requirements.
- Street lighting needing 4000K/5000K/5700K selection Catalog-extracted buyer-fit statement; verify against final project requirements.
- Smart-ready street light planning Catalog-extracted buyer-fit statement; verify against final project requirements.
Confirm another option when
- Projects with fixed model-only procurement rules Use a different product family or confirm project requirements before specification.
- High-output projects above 200W Use a different product family or confirm project requirements before specification.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- AC100-277V; 50/60Hz
- Power range
- 50W-200W, adjustable steps listed: 50/40/30W, 100/80/60W, 150/120/90W, 200/160/120W
- Driver / control
- SOSEN
Optical
- Efficacy
- 140LM/W (±5%)
- Lumen output
- Confirm for selected configuration
- CRI options
- Ra>80 (70,90 optional)
- CCT options
- 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; listed selectable 4000K/5000K/5700K
- Beam angle
- 70*140°
Mechanical
- Dimensions
- 505*129*58mm; 587*167*62mm; 680*203*65mm; 743*235*65mm
- Materials
- Confirm for selected configuration
- IP rating
- IP66
- Mounting
- pole / arm mounting; confirm exact mounting by SKU
- Installation notes
- Confirm pole height, arm diameter, tilt angle and distribution before project specification.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| BS-SLE630-B-50W | 50W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; listed selectable 4000K/5000K/5700K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| BS-SLE630-B-100W | 100W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; listed selectable 4000K/5000K/5700K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| BS-SLE630-B-150W | 150W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; listed selectable 4000K/5000K/5700K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| BS-SLE630-B-200W | 200W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; listed selectable 4000K/5000K/5700K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Power range | 50W-200W, adjustable steps listed: 50/40/30W, 100/80/60W, 150/120/90W, 200/160/120W W | Catalog Extracted PDF page(s): 68 |
| Model variants | BS-SLE630-B-50W, BS-SLE630-B-100W, BS-SLE630-B-150W, BS-SLE630-B-200W | Catalog Extracted PDF page(s): 68 |
| Input voltage | AC100-277V; 50/60Hz | Catalog Extracted PDF page(s): 68 |
| Luminous efficacy | 140LM/W (±5%) lm/W | Catalog Extracted PDF page(s): 68 |
| LED brand | LUMILEDS | Catalog Extracted PDF page(s): 68 |
| Driver brand | SOSEN | Catalog Extracted PDF page(s): 68 |
| CCT | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; listed selectable 4000K/5000K/5700K K | Catalog Extracted PDF page(s): 68 |
| CRI | Ra>80 (70,90 optional) | Catalog Extracted PDF page(s): 68 |
| Power factor | 0.95 | Catalog Extracted PDF page(s): 68 |
| Beam angle / distribution | 70*140° | Catalog Extracted PDF page(s): 68 |
| IP rating | IP66 | Catalog Extracted PDF page(s): 68 |
| IK rating | IK08 | Catalog Extracted PDF page(s): 68 |
| Lifespan | 50,000Hrs | Catalog Extracted PDF page(s): 68 |
| Working temperature | -35°C to +50°C | Catalog Extracted PDF page(s): 68 |
| Warranty | 5 Years | Catalog Extracted PDF page(s): 68 |
| Certification | CQC/CB/CE/SAA/FCC/RoHS | Catalog Extracted PDF page(s): 68 |
| Control options | DALI, Photocell, Timer, NEMA socket, ZHAGA socket, extra 10KV/20KV SPD, photocell sensor, shorting cap | Catalog Extracted PDF page(s): 68 |
| Dimensions | 505*129*58mm; 587*167*62mm; 680*203*65mm; 743*235*65mm | Catalog Extracted PDF page(s): 68 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
DALI, Photocell, Timer, NEMA socket, ZHAGA socket, extra 10KV/20KV SPD, photocell sensor, shorting cap
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Technical specifications extracted from catalogue street light section. datasheet
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Confirm for selected configuration
- Sample policy
- Confirm for selected configuration
- Sample lead time
- Confirm for selected configuration
- International lead time
- Confirm for selected configuration
- Warranty
- 5 Years
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Road widthNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 2 Pole heightNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 3 Pole distanceNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 4 Mounting arm sizeNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 5 QuantityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 6 Input voltage or solar requirementNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 7 CCTNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 8 Control methodNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 9 IP/IK or certification marketNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 10 Drawing or site photo if availableNeeded to confirm product selection, quotation, photometric fit or project configuration.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Is BS-SLE630-B suitable when street light power or CCT must be adjustable?
BS-SLE630-B fits projects needing 50W-200W street lights with 3CCT and power adjustment, 70*140° distribution, IP66/IK08 protection and NEMA/ZHAGA accessory options.
What specifications should buyers confirm before ordering BS-SLE630-B LED Street Light?
Confirm wattage, voltage, beam distribution, CCT/CRI, IP/IK requirement, mounting condition, control method, certification market, quantity and required documents before RFQ.
Which evidence is still needed for BS-SLE630-B LED Street Light?
Final datasheet, applicable certificates by market, IES/LDT photometric files and selected SKU details should be checked before using the page as a final specification reference.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
