Street Light

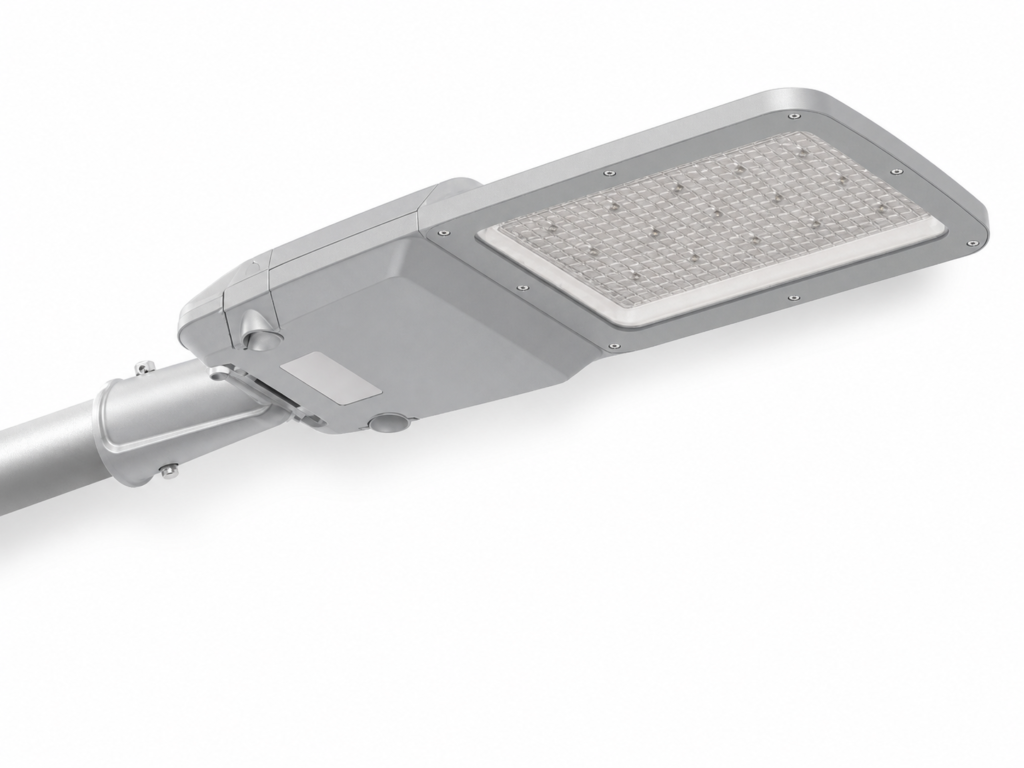

BS-SLE620 LED Street Light
Is BS-SLE620 suitable for roadway projects needing post-top or side-entry mounting?
BS-SLE620 fits 50W-320W street lighting projects that need T2-M/T3-M optics, post-top or side-entry mounting, IP66 protection, corrosion-resistant optical cover and smart-ready accessory options.
- Power
- 50W-320W
- Input
- AC100-277V; 50/60Hz
- Efficacy
- 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W
- CCT
- 3000K/4000K/5000K/5700K/6500K
- CRI
- Ra>80 (70,90 optional)
- Protection
- IP66
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Post-top or side-entry LED street light with T2-M/T3-M optics, IP66 protection and NEMA/ZHAGA accessory options.
- Catalog range: 50W-320W with 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W efficacy.
- Outdoor protection: IP66 / IK08.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Roadway projects requiring post-top or side-entry mounting Catalog-extracted buyer-fit statement; verify against final project requirements.
- Outdoor environments needing anti-corrosion/UV design Catalog-extracted buyer-fit statement; verify against final project requirements.
- Smart street light accessory planning Catalog-extracted buyer-fit statement; verify against final project requirements.
Confirm another option when
- Projects requiring solar charging as the main power source Use a different product family or confirm project requirements before specification.
- Low-cost basic street lighting without accessory requirements Use a different product family or confirm project requirements before specification.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- AC100-277V; 50/60Hz
- Power range
- 50W-320W
- Driver / control
- SOSEN
Optical
- Efficacy
- 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W
- Lumen output
- Confirm for selected configuration
- CRI options
- Ra>80 (70,90 optional)
- CCT options
- 3000K/4000K/5000K/5700K/6500K
- Beam angle
- T2-M / T3-M
Mechanical
- Dimensions
- 542*189*66mm; 590*219*66mm; 717*259*66mm; 797*280*66mm; 857*324*66mm
- Materials
- Confirm for selected configuration
- IP rating
- IP66
- Mounting
- pole / arm mounting; confirm exact mounting by SKU
- Installation notes
- Confirm pole height, arm diameter, tilt angle and distribution before project specification.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| BS-SLE620-50W | 50W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W | 50,000Hrs | |
| BS-SLE620-100W | 100W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W | 50,000Hrs | |
| BS-SLE620-150W | 150W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W | 50,000Hrs | |
| BS-SLE620-200W | 200W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W | 50,000Hrs | |
| BS-SLE620-240W | 240W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W | 50,000Hrs | |
| BS-SLE620-320W | 320W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W | 50,000Hrs |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Power range | 50W-320W W | Catalog Extracted PDF page(s): 70 |
| Model variants | BS-SLE620-50W, BS-SLE620-100W, BS-SLE620-150W, BS-SLE620-200W, BS-SLE620-240W, BS-SLE620-320W | Catalog Extracted PDF page(s): 70 |
| Input voltage | AC100-277V; 50/60Hz | Catalog Extracted PDF page(s): 70 |
| Luminous efficacy | 150LM/W (±5%) in spec; feature text says offered 30W-240W and up to 140lm/W lm/W | Catalog Extracted PDF page(s): 70 |
| LED brand | LUMILEDS | Catalog Extracted PDF page(s): 70 |
| Driver brand | SOSEN | Catalog Extracted PDF page(s): 70 |
| CCT | 3000K/4000K/5000K/5700K/6500K K | Catalog Extracted PDF page(s): 70 |
| CRI | Ra>80 (70,90 optional) | Catalog Extracted PDF page(s): 70 |
| Power factor | 0.95 | Catalog Extracted PDF page(s): 70 |
| Beam angle / distribution | T2-M / T3-M | Catalog Extracted PDF page(s): 70 |
| IP rating | IP66 | Catalog Extracted PDF page(s): 70 |
| IK rating | IK08 | Catalog Extracted PDF page(s): 70 |
| Lifespan | 50,000Hrs | Catalog Extracted PDF page(s): 70 |
| Working temperature | -35°C to +50°C | Catalog Extracted PDF page(s): 70 |
| Warranty | 5 Years | Catalog Extracted PDF page(s): 70 |
| Certification | CQC/CB/CE/SAA/FCC/RoHS | Catalog Extracted PDF page(s): 70 |
| Control options | DALI, Photocell, Timer, NEMA socket, ZHAGA socket, extra 10KV/20KV SPD, photocell sensor, shorting cap, power-off switch | Catalog Extracted PDF page(s): 70 |
| Dimensions | 542*189*66mm; 590*219*66mm; 717*259*66mm; 797*280*66mm; 857*324*66mm | Catalog Extracted PDF page(s): 70 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
DALI, Photocell, Timer, NEMA socket, ZHAGA socket, extra 10KV/20KV SPD, photocell sensor, shorting cap, power-off switch
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Technical specifications extracted from catalogue street light section. datasheet
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Confirm for selected configuration
- Sample policy
- Confirm for selected configuration
- Sample lead time
- Confirm for selected configuration
- International lead time
- Confirm for selected configuration
- Warranty
- 5 Years
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Road widthNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 2 Pole heightNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 3 Pole distanceNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 4 Mounting arm sizeNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 5 QuantityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 6 Input voltage or solar requirementNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 7 CCTNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 8 Control methodNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 9 IP/IK or certification marketNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 10 Drawing or site photo if availableNeeded to confirm product selection, quotation, photometric fit or project configuration.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Is BS-SLE620 suitable for roadway projects needing post-top or side-entry mounting?
BS-SLE620 fits 50W-320W street lighting projects that need T2-M/T3-M optics, post-top or side-entry mounting, IP66 protection, corrosion-resistant optical cover and smart-ready accessory options.
What specifications should buyers confirm before ordering BS-SLE620 LED Street Light?
Confirm wattage, voltage, beam distribution, CCT/CRI, IP/IK requirement, mounting condition, control method, certification market, quantity and required documents before RFQ.
Which evidence is still needed for BS-SLE620 LED Street Light?
Final datasheet, applicable certificates by market, IES/LDT photometric files and selected SKU details should be checked before using the page as a final specification reference.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
