Street Light

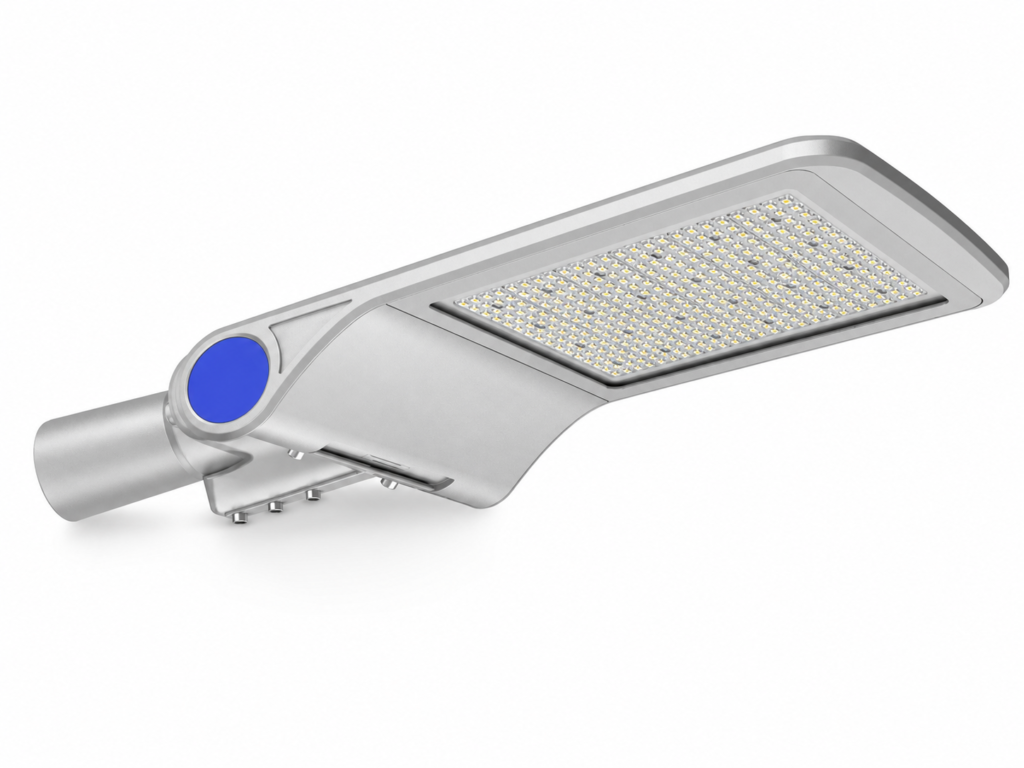

BS-SLA685 LED Street Light
Is BS-SLA685 suitable for roadway and campus outdoor lighting projects?
BS-SLA685 is suitable when the project needs 30W-240W street lighting, IP66 outdoor protection, T2-M/T3-M distribution, photocell/timer/DALI options and tool-free maintenance.
- Power
- 30W-240W
- Input
- AC100-277V; 50/60Hz
- Efficacy
- 140LM/W (±5%)
- CCT
- 3000K/4000K/5000K/5700K/6500K
- CRI
- Ra>80 (70,90 optional)
- Protection
- IP66
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Tool-free maintainable LED street light family for roadway, campus and public outdoor lighting projects.
- Catalog range: 30W-240W with 140LM/W (±5%) efficacy.
- Outdoor protection: IP66 / IK08.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Roadway and residential street lighting Catalog-extracted buyer-fit statement; verify against final project requirements.
- Campus and public outdoor circulation Catalog-extracted buyer-fit statement; verify against final project requirements.
- Projects requiring tool-free maintenance Catalog-extracted buyer-fit statement; verify against final project requirements.
- Buyers comparing T2-M/T3-M street-light distribution Catalog-extracted buyer-fit statement; verify against final project requirements.
Confirm another option when
- Indoor commercial lighting Use a different product family or confirm project requirements before specification.
- Facade decoration or wall washing Use a different product family or confirm project requirements before specification.
- Projects needing verified photometric simulation before IES/LDT files are confirmed Use a different product family or confirm project requirements before specification.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- AC100-277V; 50/60Hz
- Power range
- 30W-240W
- Driver / control
- MEANWELL / SOSEN
Optical
- Efficacy
- 140LM/W (±5%)
- Lumen output
- Confirm for selected configuration
- CRI options
- Ra>80 (70,90 optional)
- CCT options
- 3000K/4000K/5000K/5700K/6500K
- Beam angle
- T2-M / T3-M
Mechanical
- Dimensions
- 428*208*94mm; 519*297*111mm; 610*297*111mm; 700*297*111mm by power class
- Materials
- Confirm for selected configuration
- IP rating
- IP66
- Mounting
- pole / arm mounting; confirm exact mounting by SKU
- Installation notes
- Confirm pole height, arm diameter, tilt angle and distribution before project specification.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| SLA685-30W | 30W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| SLA685-50W | 50W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| SLA685-60W | 60W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| SLA685-80W | 80W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| SLA685-100W | 100W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| SLA685-B120 | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | ||
| SLA685-150W | 150W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| SLA685-180W | 180W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| SLA685-200W | 200W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs | |
| SLA685-240W | 240W | 3000K/4000K/5000K/5700K/6500K | Ra>80 (70,90 optional) | 140LM/W (±5%) | 50,000Hrs |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Power range | 30W-240W W | Catalog Extracted PDF page(s): 65 |
| Model variants | SLA685-30W, SLA685-50W, SLA685-60W, SLA685-80W, SLA685-100W, SLA685-B120, SLA685-150W, SLA685-180W, SLA685-200W, SLA685-240W | Catalog Extracted PDF page(s): 65 |
| Input voltage | AC100-277V; 50/60Hz | Catalog Extracted PDF page(s): 65 |
| Luminous efficacy | 140LM/W (±5%) lm/W | Catalog Extracted PDF page(s): 65 |
| LED brand | LUMILEDS | Catalog Extracted PDF page(s): 65 |
| Driver brand | MEANWELL / SOSEN | Catalog Extracted PDF page(s): 65 |
| CCT | 3000K/4000K/5000K/5700K/6500K K | Catalog Extracted PDF page(s): 65 |
| CRI | Ra>80 (70,90 optional) | Catalog Extracted PDF page(s): 65 |
| Power factor | 0.95 | Catalog Extracted PDF page(s): 65 |
| Beam angle / distribution | T2-M / T3-M | Catalog Extracted PDF page(s): 65 |
| IP rating | IP66 | Catalog Extracted PDF page(s): 65 |
| IK rating | IK08 | Catalog Extracted PDF page(s): 65 |
| Lifespan | 50,000Hrs | Catalog Extracted PDF page(s): 65 |
| Working temperature | -35°C to +50°C | Catalog Extracted PDF page(s): 65 |
| Warranty | 5 Years | Catalog Extracted PDF page(s): 65 |
| Certification | CQC/TUV/CB/CE/SAA/FCC/RoHS | Catalog Extracted PDF page(s): 65 |
| Control options | 1-10V, DALI, Photocell, Timer | Catalog Extracted PDF page(s): 65 |
| Dimensions | 428*208*94mm; 519*297*111mm; 610*297*111mm; 700*297*111mm by power class | Catalog Extracted PDF page(s): 65 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
1-10V, DALI, Photocell, Timer
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Technical specifications extracted from catalogue street light section. datasheet
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Confirm for selected configuration
- Sample policy
- Confirm for selected configuration
- Sample lead time
- Confirm for selected configuration
- International lead time
- Confirm for selected configuration
- Warranty
- 5 Years
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Road widthNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 2 Pole heightNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 3 Pole distanceNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 4 Mounting arm sizeNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 5 QuantityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 6 Input voltage or solar requirementNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 7 CCTNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 8 Control methodNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 9 IP/IK or certification marketNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 10 Drawing or site photo if availableNeeded to confirm product selection, quotation, photometric fit or project configuration.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Is BS-SLA685 suitable for roadway and campus outdoor lighting projects?
BS-SLA685 is suitable when the project needs 30W-240W street lighting, IP66 outdoor protection, T2-M/T3-M distribution, photocell/timer/DALI options and tool-free maintenance.
What specifications should buyers confirm before ordering BS-SLA685 LED Street Light?
Confirm wattage, voltage, beam distribution, CCT/CRI, IP/IK requirement, mounting condition, control method, certification market, quantity and required documents before RFQ.
Which evidence is still needed for BS-SLA685 LED Street Light?
Final datasheet, applicable certificates by market, IES/LDT photometric files and selected SKU details should be checked before using the page as a final specification reference.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
