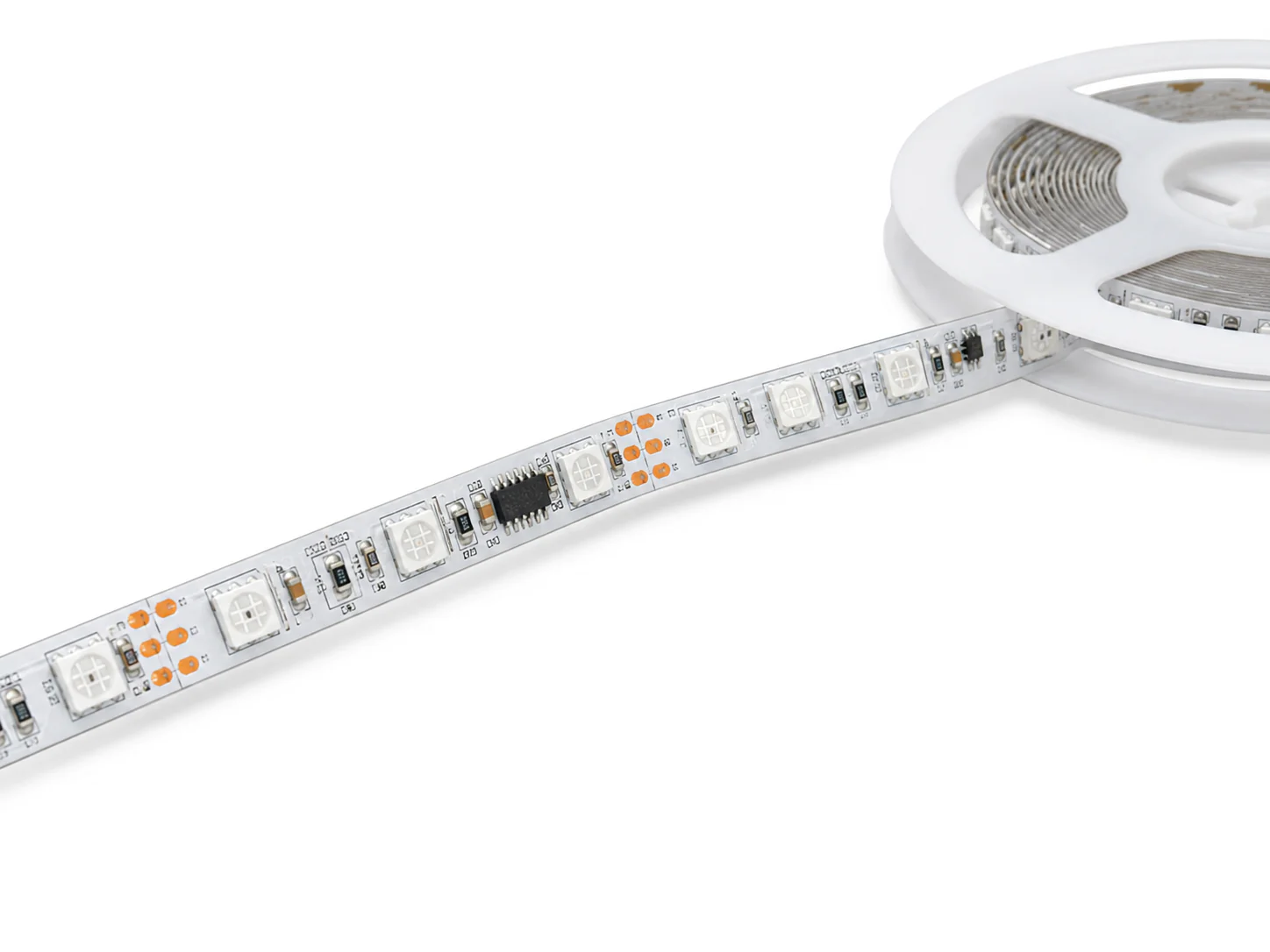

Besenled Magic Digital LED Strip Series
Which addressable LED strip fits programmable pixel-effect lighting?
Besenled Magic/Digital strip series includes 5050 RGB/RGBW IC-driven variants in 5V/12V/24V with 30-144 LEDs/m options for programmable effects after controller compatibility is confirmed.
- Power
- 7.2W/m to 42W/m max
- Input
- 5V/12V/24V DC
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Use this page as the RFQ-ready family page; exact SKU choice depends on voltage, LED density, PCB width, color and installation condition.
- Catalog values are treated as source facts; peer references are not used as Besenled test evidence.
- Confirm final datasheet, certificate applicability and sample lead time before public final publication.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Dynamic signage and scene lighting IC-driven strips support addressable color effects.
- Pixel control projects Variants list common IC families and densities.
- Designers comparing 5V/12V/24V digital strips The family covers several voltage architectures.
Confirm another option when
- Simple single-color strip lighting Use standard 2835/5050 strip.
- Projects without controller/wiring design Digital strip requires controller, data and power planning.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- 5V/12V/24V DC
- Power range
- 7.2W/m to 42W/m max
- Driver / control
- Use constant-voltage LED drivers or compatible controllers according to selected strip/controller type; final wiring and load must be confirmed per project.
Mechanical
- Dimensions
- 10mm, 12mm
- Installation notes
- Confirm heat dissipation, driver capacity, maximum run length and profile/diffuser selection before order.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| 5050-30-RGB-2811/1903-12V-10MM | 7.2W/m max | 10mm PCB | RGB digital | not specified | 160 lm/m | 50,000h |
| 5050-60-RGB-2811/1903-12V/24V-10MM | 14.4W/m max | 10mm PCB | RGB digital | not specified | 325 lm/m | 50,000h |
| 5050-60-RGB-2812/6812-5V-10MM | 18W/m max | 10mm PCB | RGB digital | not specified | 325 lm/m | 50,000h |
| 5050-144-RGB-2812/6812-5V-10MM | 42W/m max | 10mm PCB | RGB digital | not specified | 790 lm/m | 50,000h |
| 5050-60-RGBW-2904/16704-24V-12MM | 14.4W/m max | 12mm PCB | RGBW digital | not specified | 325 lm/m | 50,000h |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Input voltage | 5V/12V/24V DC | catalog pages 33-34 |
| IC options | 2811/1903, 2812/6812, 2904, 16704 | catalog pages 33-34 |
| LED density | 30, 48, 60, 144 LEDs/m | catalog pages 33-34 |
| PCB width | 10mm, 12mm | catalog pages 33-34 |
| Control behavior | PWM control; catalogue states 256 brightness grades and 1024 cascade points | catalog pages 33-34 |
| Power range | 7.2W/m to 42W/m max W/m | catalog pages 33-34 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
Compatible controller/driver depends on voltage, color type and project control requirement.
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Product family and listed variants are extracted from Besenled catalogue or quotation source. catalogue
- Peer reference is used only for market classification and missing generic assumptions, not as product proof. Peer Reference
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Project-dependent; confirm by selected model and customization scope.
- Sample policy
- Samples can be quoted after confirming voltage, color, PCB width, waterproof/IP process and accessories.
- Warranty
- Product-dependent; confirm on quotation and final datasheet.
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Voltage and color typeNeeded to select correct strip/controller/profile combination.
- 2 LED density, PCB width and length per runNeeded for power calculation, voltage drop and accessory matching.
- 3 IP/waterproof requirement and installation environmentNeeded to choose bare strip, coating, silicone tube, extrusion or profile.
- 4 Driver/controller/control methodNeeded to confirm dimming, RGB/RGBW/RGBCCT, 2.4G/RF/IR, DALI/DMX if required.
- 5 Quantity, packaging and certification marketNeeded for MOQ, lead time and compliance confirmation.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Should this product be selected by exact SKU or by project requirement?
Select by project requirement first: voltage, color type, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications?
No. Peer references are used only to classify common market options and fill generic missing context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ?
Voltage, color/CCT, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certification market and packaging requirement.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
