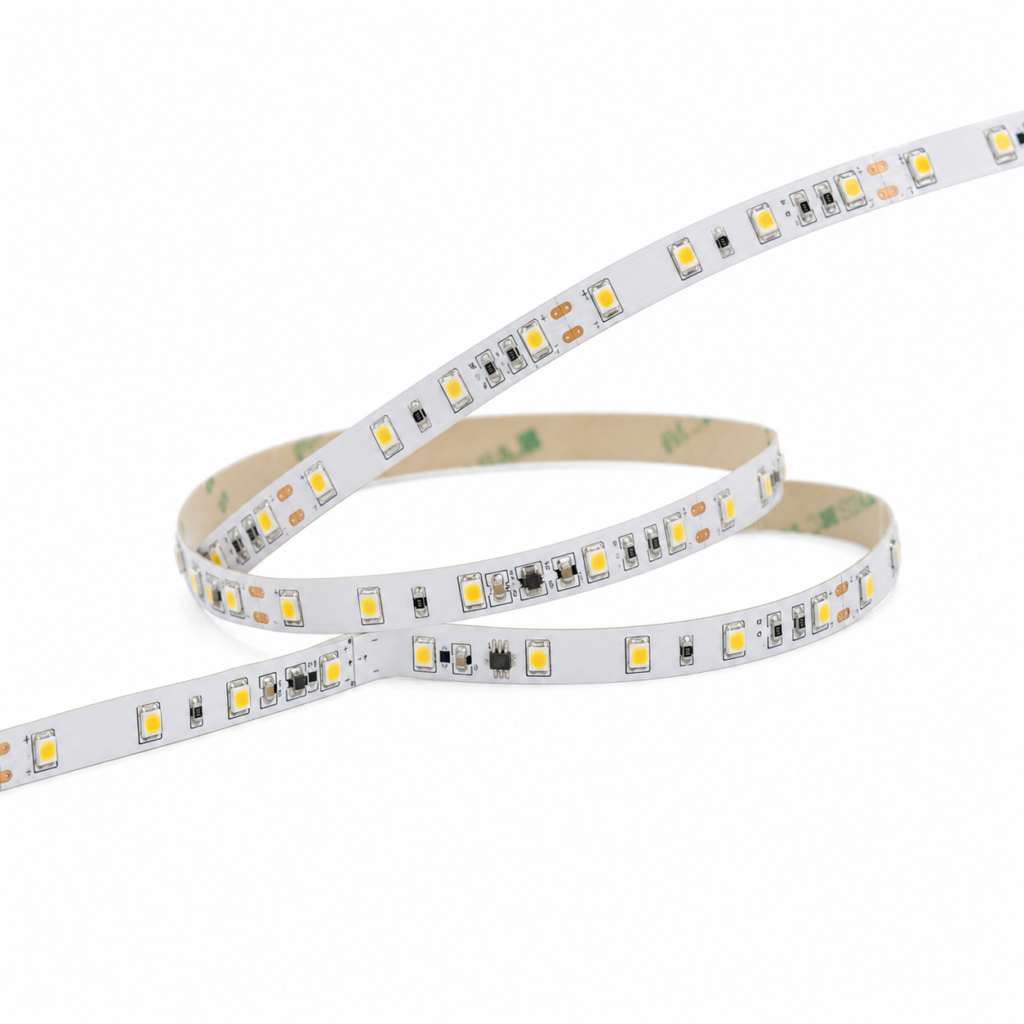

Besenled Constant Current LED Strip Series
When should a Besenled constant-current LED strip be specified?
Besenled constant-current strip pages list IC-control variants across 3528, 2835, 3014 and 5050 families, commonly 24V, with CCT ranges such as 2000K-6500K or 2200K-7000K depending on package family.
Is This Product Right for Your Project?
Buyers need strips with IC current control for more stable current behavior across selected project runs.
Best For
Projects concerned about current stability
Catalogue lists IC-control current variants.
Longer linear runs after engineering review
Current-control designs can help selected runs, but limits must be confirmed.
Spec comparisons across 3528/2835/3014/5050
Catalogue groups constant-current variants across multiple LED packages.
Not Recommended For
Final purchasing without datasheet confirmation
Some values depend on exact SKU, batch, IP process and LED bin.
Outdoor exposed installation without IP process
Bare strip applications need profile, coating, silicone or neon protection as required.
Mechanical
| Dimensions | 8mm / 10mm / 12mm PCB by model |
| Materials | white flexible PCB with IC/current-control components |
| IP Rating | needs_confirmation |
| Mounting | profile, adhesive or project-specific mounting |
| Install Notes | Confirm max run, injection point, thermal path and voltage drop despite current-control design. |
Model Variants
| Model No. | Power | Dimension | CCT | CRI | Efficacy (lm/W) | Lifespan |
|---|---|---|---|---|---|---|
| 3528-60-24V-8MM | 4.2W/m rated; 4.8W/m max | 8mm PCB | 2000K-6500K | Ra80+/Ra90+ | 390-450 lm/m typical flux | needs_confirmation |
| 3528-168-24V-8MM | 12W/m rated; 13.4W/m max | 8mm PCB | 2000K-6500K | Ra80+/Ra90+ | 1130-1280 lm/m typical flux | needs_confirmation |
| 2835-120-24V-10MM | 16.8W/m rated; 28.8W/m max | 10mm PCB | 2200K-7000K | Ra80+/Ra90+ | 1750-2100 lm/m typical flux | needs_confirmation |
| 3014-140-24V-10MM | 13W/m rated; 14.4W/m max | 10mm PCB | 2200K-6500K | Ra80+/Ra90+ | 1450-1700 lm/m typical flux | needs_confirmation |
Additional Specifications
| Current control type | IC control current |
| Input voltage | 12V DC or 24V DC (by model; 24V common) |
| LED families | 3528, 2835, 3014, 5050 (listed catalogue families) |
| PCB width | 8mm, 10mm or 12mm (by model) |
| CCT | 2000K-7000K (by LED family/model) |
| Typical flux | 390-2800 lm/m (by listed model and CCT) |
Application Context
Longer-run linear lighting, voltage-drop-sensitive projects, stable output strip applications
Use Cases
Projects concerned about current stability
Catalogue lists IC-control current variants.
Longer linear runs after engineering review
Current-control designs can help selected runs, but limits must be confirmed.
Spec comparisons across 3528/2835/3014/5050
Catalogue groups constant-current variants across multiple LED packages.
Quick Facts
- ✓ IP Rating: needs_confirmation
- ✓ Product-dependent; confirm on quotation and final datasheet. warranty
- ✓ Certified: CE, RoHS
Project-dependent; confirm by selected model and customization scope.
Sample
needs_confirmation
International
needs_confirmation
Product-dependent; confirm on quotation and final datasheet.
Sample Policy
Samples can be quoted after confirming voltage, color/CCT, PCB width, waterproof/IP process and accessories.
Customization Options
Quote Basis
RFQ Required
What We Need for Your RFQ
→
Voltage and color/CCT/CRI requirement
Needed to select the correct strip variant and compatible driver/controller.
→
LED density, PCB width and length per run
Needed for power calculation, voltage drop, aluminum profile matching and accessory selection.
→
Installation environment and IP requirement
Needed to choose bare strip, coating, silicone sleeve, neon flex or profile protection.
→
Quantity, packaging and destination market
Needed for MOQ, lead time and certificate coverage check.
Certifications
CE
RoHS
Evidence & Claims
✓
Product family and listed variants are extracted from Besenled catalogue source pages.
✓
Peer reference is used only for market taxonomy and missing generic assumptions, not as product proof.
Sources & Methodology
Source file: /Users/raincai/Downloads/0-PT-Strong/员工工作报告/Product PT Strong Group (Part of BesenLED)/Besen led strip +neon catalog 2025pdf.pdf; source pages: 20-23. Structured as a B2B series product to avoid thin duplicate SKU URLs. Lightstec references consulted only for common LED strip market taxonomy and missing-generic classification: https://www.lightstec.com/; https://lightstec.com/led-strip-lights/; https://lightstec.com/led-strip-lights/smd-2835-series/. Peer reference is not used as Besenled product proof.
2026-07-29
Frequently Asked Questions
Should this product be selected by exact SKU or by project requirement? +
Select by project requirement first: voltage, color/CCT, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications? +
No. Peer references are used only to classify common market options and missing generic context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ? +
Voltage, CCT/color type, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certificate market and packaging requirement.
Key Takeaways
- → Use this page as an RFQ-ready product-family page; select exact SKU by voltage, LED density, PCB width, CCT/CRI, IP process and run length.
- → Catalogue values are treated as Besenled source facts; peer references are not used as Besenled test evidence.
- → Items marked needs_confirmation require final datasheet, certificate or sales confirmation before public final publication.
Related Resources
Product Hub
Browse all products
Solutions
Project solutions
Applications
By building type
Guides
Buying & spec guides
Similar Products

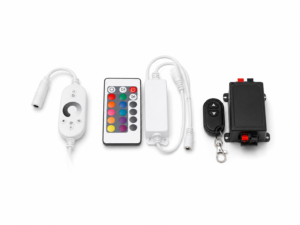

Besenled LED Strip Controller Series
Controller and dimmer accessory family for single-color, CCT, RGB, RGBW and RGB+CCT LED strip systems.
Besenled Office Linear LED Aluminum Profile Series
Office linear aluminum profile family covering recessed and surface profile sizes for broader architectural linear fixtures.

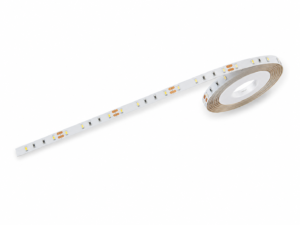

Besenled 3014 SMD LED Strip Light Series
