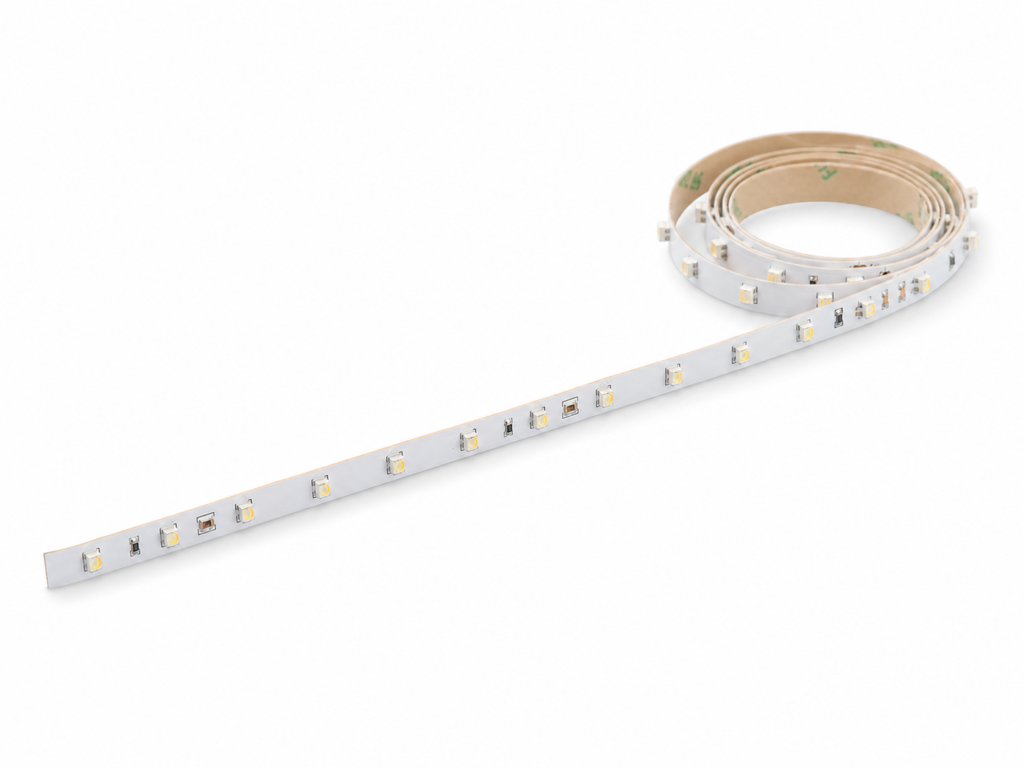

Besenled 335 Side View LED Strip Light Series
When should a Besenled 335 side-view LED strip be selected?
Besenled 335 side-view strip includes 60 and 120 LEDs/m options, 12V/24V, 8mm PCB, 2400K-7000K CCT and Ra80+ catalogue options.
Is This Product Right for Your Project?
Buyers need side-emitting LED strips for narrow spaces where light should emit from the strip edge.
Best For
Edge lighting and shallow channels
Side-view LED package emits from the edge rather than the strip face.
Signage and contour lighting
The side-emitting layout helps route light around narrow outlines.
Low-profile architectural details
8mm PCB and side emission fit tight locations.
Not Recommended For
Standard face-emitting cove lighting
Use standard 2835/3014/COB strips when front emission is required.
High-output general illumination
Typical flux is lower than high-output 5730 or dense 3014 options.
Mechanical
| Dimensions | 8mm PCB; 1.8mm slim thickness noted |
| Materials | white flexible PCB |
| IP Rating | needs_confirmation |
| Mounting | edge channel, signage channel, adhesive or profile |
| Install Notes | Confirm side-emitting orientation in drawings before production. |
Model Variants
| Model No. | Power | Dimension | CCT | CRI | Efficacy (lm/W) | Lifespan |
|---|---|---|---|---|---|---|
| 335-60-12V/24V-8MM | 4.2W/m rated; 4.8W/m max | 8mm PCB | 2400K-7000K | Ra80+ | 240-300 lm/m typical flux | needs_confirmation |
| 335-120-12V/24V-8MM | 8.64W/m rated; 9.6W/m max | 8mm PCB | 2400K-7000K | Ra80+ | 480-600 lm/m typical flux | needs_confirmation |
Additional Specifications
| Input voltage | 12V/24V DC |
| LED density | 60 or 120 LEDs/m |
| PCB width | 8mm |
| CCT | 2400K-7000K (eight optional white light choices) |
| CRI | Ra80+ |
| Typical flux | 240-600 lm/m (by density and CCT) |
Application Context
Edge lighting, signage, shallow channel lighting, architectural side-emitting lines
Use Cases
Edge lighting and shallow channels
Side-view LED package emits from the edge rather than the strip face.
Signage and contour lighting
The side-emitting layout helps route light around narrow outlines.
Low-profile architectural details
8mm PCB and side emission fit tight locations.
Quick Facts
- ✓ IP Rating: needs_confirmation
- ✓ Product-dependent; confirm on quotation and final datasheet. warranty
- ✓ Certified: CE, RoHS
Project-dependent; confirm by selected model and customization scope.
Sample
needs_confirmation
International
needs_confirmation
Product-dependent; confirm on quotation and final datasheet.
Sample Policy
Samples can be quoted after confirming voltage, color/CCT, PCB width, waterproof/IP process and accessories.
Customization Options
Quote Basis
RFQ Required
What We Need for Your RFQ
→
Voltage and color/CCT/CRI requirement
Needed to select the correct strip variant and compatible driver/controller.
→
LED density, PCB width and length per run
Needed for power calculation, voltage drop, aluminum profile matching and accessory selection.
→
Installation environment and IP requirement
Needed to choose bare strip, coating, silicone sleeve, neon flex or profile protection.
→
Quantity, packaging and destination market
Needed for MOQ, lead time and certificate coverage check.
Certifications
CE
RoHS
Evidence & Claims
✓
Product family and listed variants are extracted from Besenled catalogue source pages.
✓
Peer reference is used only for market taxonomy and missing generic assumptions, not as product proof.
Sources & Methodology
Source file: /Users/raincai/Downloads/0-PT-Strong/员工工作报告/Product PT Strong Group (Part of BesenLED)/Besen led strip +neon catalog 2025pdf.pdf; source pages: 15. Structured as a B2B series product to avoid thin duplicate SKU URLs. Lightstec references consulted only for common LED strip market taxonomy and missing-generic classification: https://www.lightstec.com/; https://lightstec.com/led-strip-lights/; https://lightstec.com/led-strip-lights/smd-2835-series/. Peer reference is not used as Besenled product proof.
2026-07-29
Frequently Asked Questions
Should this product be selected by exact SKU or by project requirement? +
Select by project requirement first: voltage, color/CCT, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications? +
No. Peer references are used only to classify common market options and missing generic context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ? +
Voltage, CCT/color type, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certificate market and packaging requirement.
Key Takeaways
- → Use this page as an RFQ-ready product-family page; select exact SKU by voltage, LED density, PCB width, CCT/CRI, IP process and run length.
- → Catalogue values are treated as Besenled source facts; peer references are not used as Besenled test evidence.
- → Items marked needs_confirmation require final datasheet, certificate or sales confirmation before public final publication.
