Flood Light

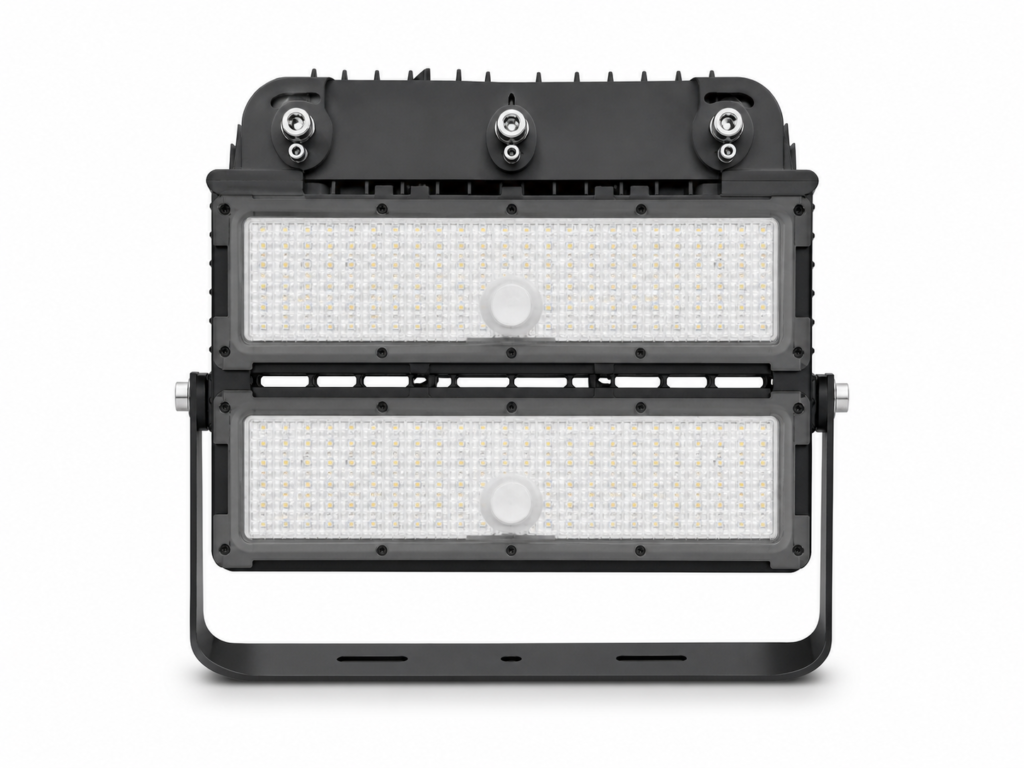

BS-MB140 LED Floodlight
Is BS-MB140 suitable for rugged 150W or 300W outdoor floodlighting?
BS-MB140 fits outdoor projects needing 150W or 300W rugged floodlights with IP66 protection, 140lm/W efficacy and anti-corrosion construction.
- Power
- 150W-300W
- Input
- Confirm for selected configuration
- Efficacy
- 140lm/W
- CCT
- 3000K/4000K/5000K/5700K/6500K
- CRI
- Ra>70
- Protection
- IP66
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- MB140 floodlight for moisture-proof, anti-corrosion and rust-proof outdoor floodlighting in 150W and 300W options.
- Catalog range: 150W-300W with 140lm/W efficacy.
- Outdoor protection: IP66 / IK08 listed as K08.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- 150W or 300W outdoor floodlight RFQs Catalog-extracted buyer-fit statement; verify against final project requirements.
- Harsh outdoor environments Catalog-extracted buyer-fit statement; verify against final project requirements.
- Projects needing adjustable brackets and optical lens options Catalog-extracted buyer-fit statement; verify against final project requirements.
Confirm another option when
- Low-wattage compact floodlight projects Use a different optical distribution or product family if the project requirement does not match.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- Confirm for selected configuration
- Power range
- 150W-300W
- Driver / control
- Confirm for selected configuration
Optical
- Efficacy
- 140lm/W
- Lumen output
- Confirm for selected configuration
- CRI options
- Ra>70
- CCT options
- 3000K/4000K/5000K/5700K/6500K
- Beam angle
- 25° / 40° / 60° / 80*150° / 90° / Type2 / Type4 listed
Mechanical
- Dimensions
- 445*181*60mm; 472*412*95mm
- Materials
- tempered glass / die-cast aluminum housing where stated; confirm by SKU
- IP rating
- IP66
- Mounting
- U bracket / floodlight bracket mounting; confirm exact mounting by SKU
- Installation notes
- Confirm mounting height, tilt, beam angle and target lux before project specification.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| BS-MB140-150W | 150W | 3000K/4000K/5000K/5700K/6500K | Ra>70 | 140lm/W | Confirm for selected configuration | |
| BS-MB140-300W | 300W | 3000K/4000K/5000K/5700K/6500K | Ra>70 | 140lm/W | Confirm for selected configuration |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Power range | 150W-300W W | Catalog Extracted PDF page(s): 43 |
| Model variants | BS-MB140-150W, BS-MB140-300W | Catalog Extracted PDF page(s): 43 |
| Input voltage | Confirm for selected configuration | Catalog Extracted PDF page(s): 43 |
| Luminous efficacy | 140lm/W lm/W | Catalog Extracted PDF page(s): 43 |
| LED brand | Confirm for selected configuration | Catalog Extracted PDF page(s): 43 |
| Driver brand | Confirm for selected configuration | Catalog Extracted PDF page(s): 43 |
| CCT | 3000K/4000K/5000K/5700K/6500K K | Catalog Extracted PDF page(s): 43 |
| CRI | Ra>70 | Catalog Extracted PDF page(s): 43 |
| Power factor | Confirm for selected configuration | Catalog Extracted PDF page(s): 43 |
| Beam angle / distribution | 25° / 40° / 60° / 80*150° / 90° / Type2 / Type4 listed | Catalog Extracted PDF page(s): 43 |
| IP rating | IP66 | Catalog Extracted PDF page(s): 43 |
| IK rating | IK08 listed as K08 | Catalog Extracted PDF page(s): 43 |
| Lifespan | Confirm for selected configuration | Catalog Extracted PDF page(s): 43 |
| Working temperature | Confirm for selected configuration | Catalog Extracted PDF page(s): 43 |
| Warranty | Confirm for selected configuration | Catalog Extracted PDF page(s): 43 |
| Certification | Confirm for selected configuration | Catalog Extracted PDF page(s): 43 |
| Control options | DALI icon appears; confirm by SKU | Catalog Extracted PDF page(s): 43 |
| Dimensions | 445*181*60mm; 472*412*95mm | Catalog Extracted PDF page(s): 43 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
DALI icon appears; confirm by SKU
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Technical specifications extracted from catalogue flood light section. datasheet
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Confirm for selected configuration
- Sample policy
- Confirm for selected configuration
- Sample lead time
- Confirm for selected configuration
- International lead time
- Confirm for selected configuration
- Warranty
- Confirm for selected configuration
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Application areaNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 2 Mounting heightNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 3 Installation distanceNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 4 Target lux or uniformityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 5 Beam angle requirementNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 6 QuantityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 7 Input voltageNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 8 CCTNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 9 Control methodNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 10 IP/IK or certification marketNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 11 Drawing or site photo if availableNeeded to confirm product selection, quotation, photometric fit or project configuration.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Is BS-MB140 suitable for rugged 150W or 300W outdoor floodlighting?
BS-MB140 fits outdoor projects needing 150W or 300W rugged floodlights with IP66 protection, 140lm/W efficacy and anti-corrosion construction.
What should buyers confirm before ordering BS-MB140 LED Floodlight?
Confirm wattage, mounting height, beam angle, voltage, CCT/CRI, IP/IK requirement, control method, certification market, quantity and required photometric documents before RFQ.
Which evidence is still needed for BS-MB140 LED Floodlight?
Final datasheet, applicable certificates by market, IES/LDT photometric files and selected SKU details should be checked before using the page as a final specification reference.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
