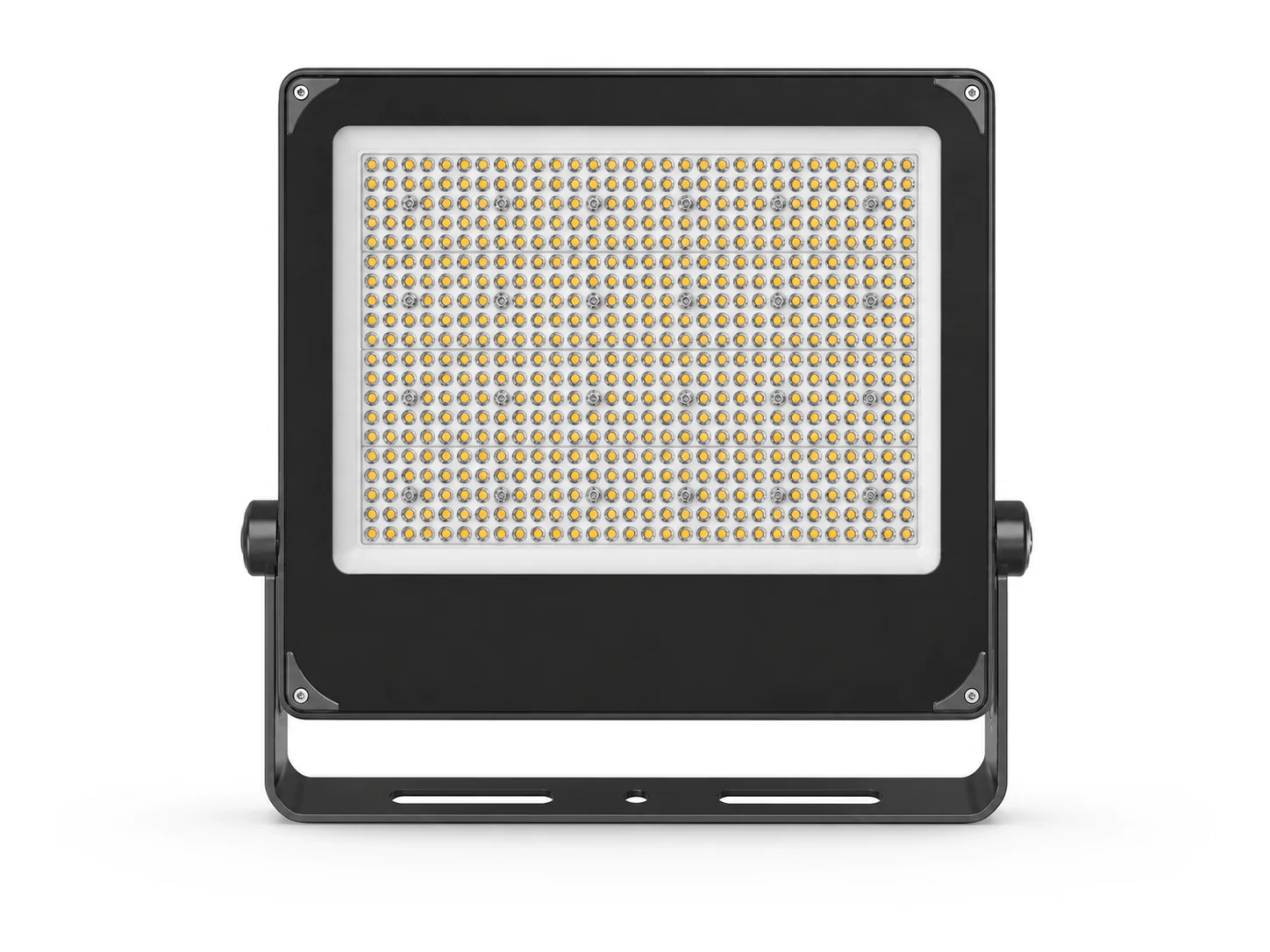

BS-FL20-B Narrow Beam LED Flood Light
Is BS-FL20-B suitable for narrow-beam outdoor flood lighting?
BS-FL20-B supports 30W-300W flood light projects with IP66/IK08 protection and beam options including 25°, 45°, 60°, 90° and 70*150°.
Is This Product Right for Your Project?
Buyers need an outdoor LED flood light with correct power range, beam angle, IP/IK protection, controls, certificates and RFQ-ready specifications.
Best For
Facade, signage, sports-area or targeted outdoor flood lighting
Catalog-extracted buyer-fit statement; verify against final project requirements.
Projects needing multiple optical angle choices
Catalog-extracted buyer-fit statement; verify against final project requirements.
Buyers requiring outdoor IP66/IK08 flood lights
Catalog-extracted buyer-fit statement; verify against final project requirements.
Not Recommended For
Projects needing simple broad wash lighting where 120° models fit better
Use a different optical distribution or product family if the project requirement does not match.
Electrical
| Input Voltage | AC100-277V; 50/60Hz |
| Wattage Range | 30W-300W |
| Control Protocols | DALI, 0-10V |
| Driver Notes | SOSEN / ISHINELUX |
Optical
| Lumen Output | needs_confirmation |
| Efficacy (lm/W) | 120LM/W (±5%) or 150LM/W (±5%) |
| CRI | Ra>80 (70,90 optional) |
| CCT Options | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable |
| Beam Angle | 25° / 45° / 60° / 90° / 70*150° |
Mechanical
| Dimensions | 192*178*38mm; 292*198*38mm; 299*256*42mm; 299*301*42mm; 349*308*44mm; 420*379*44mm |
| Materials | tempered glass / die-cast aluminum housing where stated; confirm by SKU |
| IP Rating | IP66 |
| Mounting | U bracket / floodlight bracket mounting; confirm exact mounting by SKU |
| Install Notes | Confirm mounting height, tilt, beam angle and target lux before project specification. |
Model Variants
| Model No. | Power | Dimension | CCT | CRI | Efficacy (lm/W) | Lifespan |
|---|---|---|---|---|---|---|
| BS-FL20-B-30W | 30W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL20-B-50W | 50W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL20-B-100W | 100W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL20-B-150W | 150W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL20-B-200W | 200W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL20-B-250W | 250W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL20-B-300W | 300W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs |
Additional Specifications
| Power range | 30W-300W W (catalog_extracted) |
| Model variants | BS-FL20-B-30W, BS-FL20-B-50W, BS-FL20-B-100W, BS-FL20-B-150W, BS-FL20-B-200W, BS-FL20-B-250W, BS-FL20-B-300W (catalog_extracted) |
| Input voltage | AC100-277V; 50/60Hz (catalog_extracted) |
| Luminous efficacy | 120LM/W (±5%) or 150LM/W (±5%) lm/W (catalog_extracted) |
| LED brand | LUMILEDS (catalog_extracted) |
| Driver brand | SOSEN / ISHINELUX (catalog_extracted) |
| CCT | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable K (catalog_extracted) |
| CRI | Ra>80 (70,90 optional) (catalog_extracted) |
| Power factor | 0.95 (catalog_extracted) |
| Beam angle / distribution | 25° / 45° / 60° / 90° / 70*150° (catalog_extracted) |
| IP rating | IP66 (catalog_extracted) |
| IK rating | IK08 (catalog_extracted) |
| Lifespan | 50,000Hrs (catalog_extracted) |
| Working temperature | -25°C to +45°C (catalog_extracted) |
| Warranty | 5 Years (catalog_extracted) |
| Certification | ETL/CQC/CB/CE/SAA/FCC/RoHS (catalog_extracted) |
| Control options | 1-10V, DALI, 3CCT adjustable, power adjustable 100%-75%-50% (catalog_extracted) |
| Dimensions | 192*178*38mm; 292*198*38mm; 299*256*42mm; 299*301*42mm; 349*308*44mm; 420*379*44mm (catalog_extracted) |
Application Context
Building facade and yard lighting, sports and public outdoor areas, industrial outdoor area lighting
Problem This Product Solves
Buyers need an outdoor LED flood light with correct power range, beam angle, IP/IK protection, controls, certificates and RFQ-ready specifications.
Use Cases
Facade, signage, sports-area or targeted outdoor flood lighting
Catalog-extracted buyer-fit statement; verify against final project requirements.
Projects needing multiple optical angle choices
Catalog-extracted buyer-fit statement; verify against final project requirements.
Buyers requiring outdoor IP66/IK08 flood lights
Catalog-extracted buyer-fit statement; verify against final project requirements.
Quick Facts
- ✓ 120LM/W (±5%) or 150LM/W (±5%) lm/W efficiency
- ✓ IP Rating: IP66
- ✓ CCT: 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable
- ✓ 5 Years warranty
- ✓ Certified: CB, CE, FCC, RoHS
needs_confirmation
Sample
needs_confirmation
Domestic
needs_confirmation
International
needs_confirmation
5 Years
Sample Policy
needs_confirmation
Customization Options
Quote Basis
RFQ Required
What We Need for Your RFQ
→
Application area
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
Mounting height
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
Installation distance
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
Target lux or uniformity
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
Beam angle requirement
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
Quantity
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
Input voltage
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
CCT
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
Control method
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
IP/IK or certification market
Needed to confirm product selection, quotation, photometric fit or project configuration.
→
Drawing or site photo if available
Needed to confirm product selection, quotation, photometric fit or project configuration.
Certifications
CB
CE
FCC
RoHS
Evidence & Claims
✓
Technical specifications extracted from catalogue flood light section.
Sources & Methodology
Extracted from 2026-Besenled-industrial-4.pdf LED flood light section. PT Strong introduction pages were ignored. Technical claims require confirmation against final datasheet, certificate and selected SKU before publication.
2026-07-29
Frequently Asked Questions
Is BS-FL20-B suitable for narrow-beam outdoor flood lighting? +
BS-FL20-B supports 30W-300W flood light projects with IP66/IK08 protection and beam options including 25°, 45°, 60°, 90° and 70*150°.
What should buyers confirm before ordering BS-FL20-B Narrow Beam LED Flood Light? +
Confirm wattage, mounting height, beam angle, voltage, CCT/CRI, IP/IK requirement, control method, certification market, quantity and required photometric documents before RFQ.
Which evidence is still needed for BS-FL20-B Narrow Beam LED Flood Light? +
Final datasheet, applicable certificates by market, IES/LDT photometric files and selected SKU details should be checked before using the page as a final specification reference.
Key Takeaways
- → FL20-B narrow-beam flood light for outdoor projects requiring controlled beam angles and project-specific aiming.
- → Catalog range: 30W-300W with 120LM/W (±5%) or 150LM/W (±5%) efficacy.
- → Outdoor protection: IP66 / IK08.
