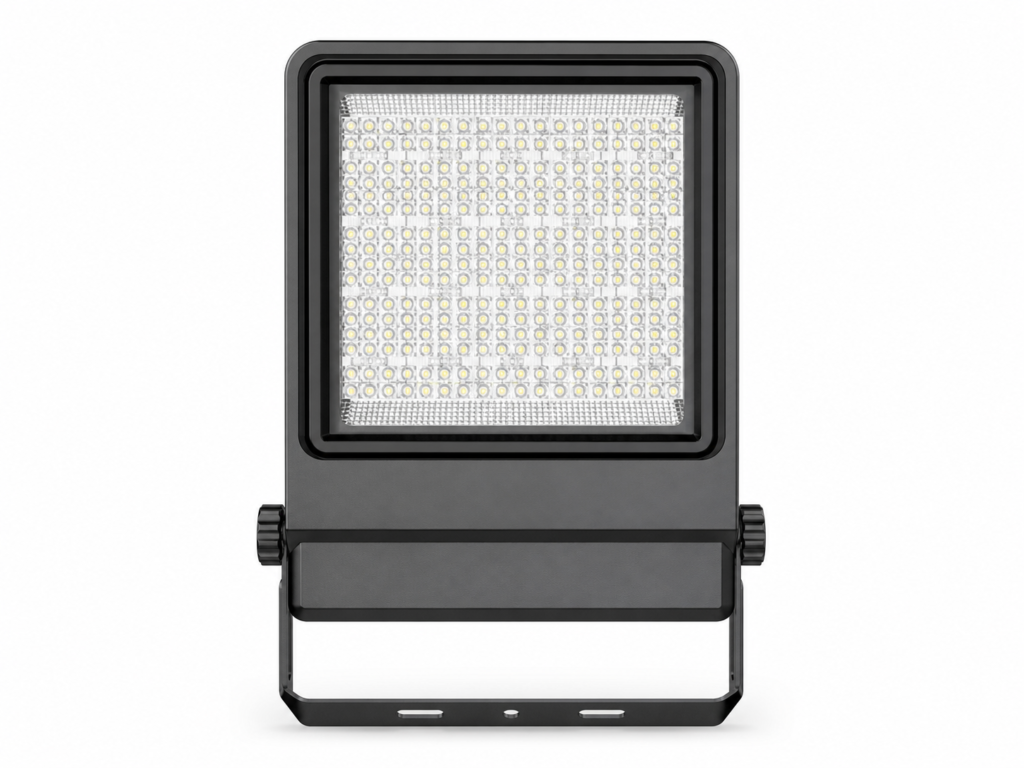

BS-FL15B Narrow Beam LED Flood Light
Is BS-FL15B suitable when a flood light project needs narrow beam options?
BS-FL15B is relevant for 30W-300W flood lighting projects needing IP66/IK08 protection, 150lm/W efficacy and beam options such as 25°, 45°, 60°, 90° or 70*150°.
- Power
- 30W-300W listed; feature text says offered in 10W-300W
- Input
- AC100-277V; 50/60Hz
- Efficacy
- 150LM/W (±5%)
- CCT
- 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable
- CRI
- Ra>80 (70,90 optional)
- Protection
- IP66
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Narrow-beam version of the FL15 flood light for projects requiring tighter optical control and selectable beam angles.
- Catalog range: 30W-300W listed; feature text says offered in 10W-300W with 150LM/W (±5%) efficacy.
- Outdoor protection: IP66 / IK08.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Facade, sign, yard or sports-area projects needing controlled beam spread Catalog-extracted buyer-fit statement; verify against final project requirements.
- Projects comparing narrow beam flood light optics Catalog-extracted buyer-fit statement; verify against final project requirements.
- B2B buyers needing CCT/power adjustable flood lights Catalog-extracted buyer-fit statement; verify against final project requirements.
Confirm another option when
- Projects requiring very broad 120° flood distribution where FL15 or FL20-A may fit better Use a different optical distribution or product family if the project requirement does not match.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- AC100-277V; 50/60Hz
- Power range
- 30W-300W listed; feature text says offered in 10W-300W
- Driver / control
- MEANWELL / SOSEN
Optical
- Efficacy
- 150LM/W (±5%)
- Lumen output
- Confirm for selected configuration
- CRI options
- Ra>80 (70,90 optional)
- CCT options
- 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable
- Beam angle
- 25° / 45° / 60° / 90° / 70*150°
Mechanical
- Dimensions
- 201*193*46mm; 247*237*47mm; 301*280*55mm; 358*320*61mm; 412*366*63mm; 486*406*69mm
- Materials
- tempered glass / die-cast aluminum housing where stated; confirm by SKU
- IP rating
- IP66
- Mounting
- U bracket / floodlight bracket mounting; confirm exact mounting by SKU
- Installation notes
- Confirm mounting height, tilt, beam angle and target lux before project specification.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| BS-FL15B-B30W | 30W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15B-B50W | 50W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15B-B100W | 100W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15B-B150W | 150W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15B-B200W | 200W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15B-B250W | 250W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15B-B300W | 300W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable | Ra>80 (70,90 optional) | 150LM/W (±5%) | 50,000Hrs |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Power range | 30W-300W listed; feature text says offered in 10W-300W W | Catalog Extracted PDF page(s): 36 |
| Model variants | BS-FL15B-B30W, BS-FL15B-B50W, BS-FL15B-B100W, BS-FL15B-B150W, BS-FL15B-B200W, BS-FL15B-B250W, BS-FL15B-B300W | Catalog Extracted PDF page(s): 36 |
| Input voltage | AC100-277V; 50/60Hz | Catalog Extracted PDF page(s): 36 |
| Luminous efficacy | 150LM/W (±5%) lm/W | Catalog Extracted PDF page(s): 36 |
| LED brand | LUMILEDS | Catalog Extracted PDF page(s): 36 |
| Driver brand | MEANWELL / SOSEN | Catalog Extracted PDF page(s): 36 |
| CCT | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable K | Catalog Extracted PDF page(s): 36 |
| CRI | Ra>80 (70,90 optional) | Catalog Extracted PDF page(s): 36 |
| Power factor | 0.95 | Catalog Extracted PDF page(s): 36 |
| Beam angle / distribution | 25° / 45° / 60° / 90° / 70*150° | Catalog Extracted PDF page(s): 36 |
| IP rating | IP66 | Catalog Extracted PDF page(s): 36 |
| IK rating | IK08 | Catalog Extracted PDF page(s): 36 |
| Lifespan | 50,000Hrs | Catalog Extracted PDF page(s): 36 |
| Working temperature | -25°C to +45°C | Catalog Extracted PDF page(s): 36 |
| Warranty | 5 Years | Catalog Extracted PDF page(s): 36 |
| Certification | ETL/CQC/CB/CE/SAA/FCC/RoHS | Catalog Extracted PDF page(s): 36 |
| Control options | 1-10V, DALI, 3CCT adjustable, power adjustable 100%-75%-50% | Catalog Extracted PDF page(s): 36 |
| Dimensions | 201*193*46mm; 247*237*47mm; 301*280*55mm; 358*320*61mm; 412*366*63mm; 486*406*69mm | Catalog Extracted PDF page(s): 36 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
1-10V, DALI, 3CCT adjustable, power adjustable 100%-75%-50%
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Technical specifications extracted from catalogue flood light section. datasheet
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Confirm for selected configuration
- Sample policy
- Confirm for selected configuration
- Sample lead time
- Confirm for selected configuration
- International lead time
- Confirm for selected configuration
- Warranty
- 5 Years
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Application areaNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 2 Mounting heightNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 3 Installation distanceNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 4 Target lux or uniformityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 5 Beam angle requirementNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 6 QuantityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 7 Input voltageNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 8 CCTNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 9 Control methodNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 10 IP/IK or certification marketNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 11 Drawing or site photo if availableNeeded to confirm product selection, quotation, photometric fit or project configuration.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Is BS-FL15B suitable when a flood light project needs narrow beam options?
BS-FL15B is relevant for 30W-300W flood lighting projects needing IP66/IK08 protection, 150lm/W efficacy and beam options such as 25°, 45°, 60°, 90° or 70*150°.
What should buyers confirm before ordering BS-FL15B Narrow Beam LED Flood Light?
Confirm wattage, mounting height, beam angle, voltage, CCT/CRI, IP/IK requirement, control method, certification market, quantity and required photometric documents before RFQ.
Which evidence is still needed for BS-FL15B Narrow Beam LED Flood Light?
Final datasheet, applicable certificates by market, IES/LDT photometric files and selected SKU details should be checked before using the page as a final specification reference.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
