Flood Light

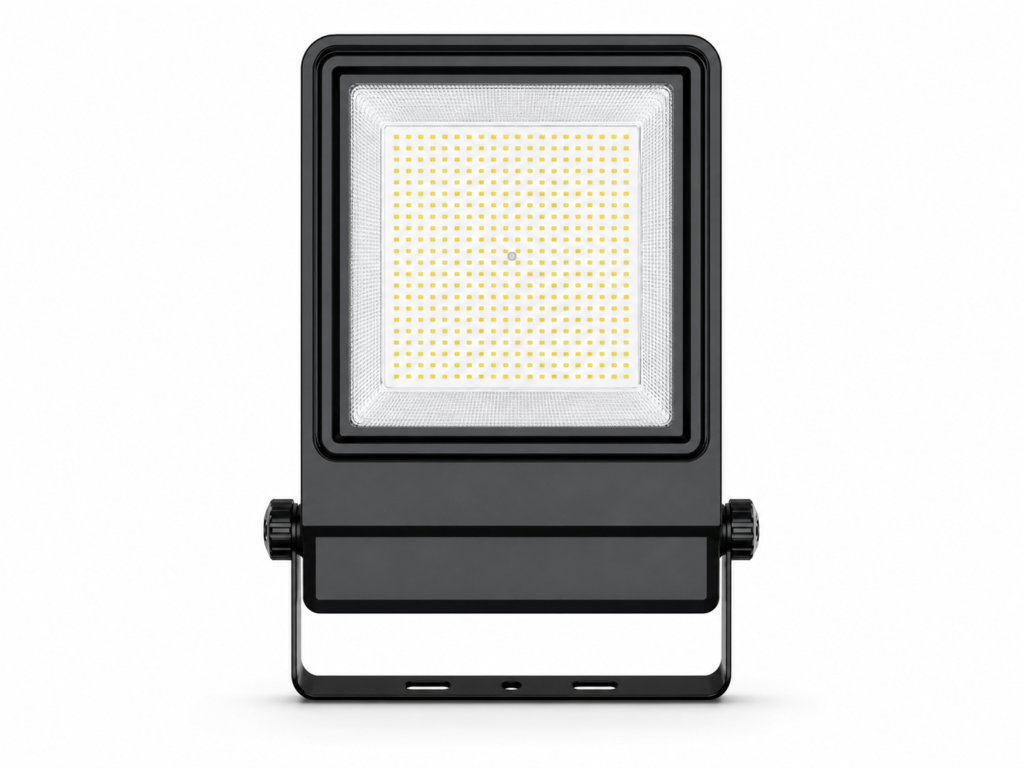

BS-FL15 LED Flood Light
Is BS-FL15 suitable for adjustable outdoor flood lighting projects?
BS-FL15 fits projects needing 10W-300W LED flood lights, IP66/IK08 protection, 120° beam, optional sensor mode, 1-10V/DALI options and 3CCT/power-adjustable configurations.
- Power
- 10W-300W
- Input
- AC100-277V; 50/60Hz
- Efficacy
- 120LM/W (±5%) or 150LM/W (±5%)
- CCT
- 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets
- CRI
- Ra>80 (70,90 optional)
- Protection
- IP66
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Adjustable LED flood light family for outdoor area, facade and project lighting where buyers need wide 120° distribution and 3CCT/power-adjustable options.
- Catalog range: 10W-300W with 120LM/W (±5%) or 150LM/W (±5%) efficacy.
- Outdoor protection: IP66 / IK08.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Outdoor area and building perimeter lighting Catalog-extracted buyer-fit statement; verify against final project requirements.
- Projects needing 120° wide flood distribution Catalog-extracted buyer-fit statement; verify against final project requirements.
- Buyers comparing adjustable CCT and wattage flood lights Catalog-extracted buyer-fit statement; verify against final project requirements.
- RFQs requiring 10W-300W power coverage Catalog-extracted buyer-fit statement; verify against final project requirements.
Confirm another option when
- Roadway pole-spacing projects requiring street-light optics Use a different optical distribution or product family if the project requirement does not match.
- Projects needing narrow beam control unless a narrow-beam model is selected Use a different optical distribution or product family if the project requirement does not match.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- AC100-277V; 50/60Hz
- Power range
- 10W-300W
- Driver / control
- MEANWELL / SOSEN / ISHINELUX
Optical
- Efficacy
- 120LM/W (±5%) or 150LM/W (±5%)
- Lumen output
- Confirm for selected configuration
- CRI options
- Ra>80 (70,90 optional)
- CCT options
- 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets
- Beam angle
- 120°
Mechanical
- Dimensions
- 127*127*44mm; 148*148*44mm; 201*193*46mm; 247*237*47mm; 301*280*55mm; 358*320*61mm; 412*366*63mm; 486*406*69mm
- Materials
- tempered glass / die-cast aluminum housing where stated; confirm by SKU
- IP rating
- IP66
- Mounting
- U bracket / floodlight bracket mounting; confirm exact mounting by SKU
- Installation notes
- Confirm mounting height, tilt, beam angle and target lux before project specification.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| BS-FL15-B10W | 10W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15-B20W | 20W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15-B30W | 30W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15-B50W | 50W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15-B100W | 100W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15-B150W | 150W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15-B200W | 200W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15-B250W | 250W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs | |
| BS-FL15-B300W | 300W | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets | Ra>80 (70,90 optional) | 120LM/W (±5%) or 150LM/W (±5%) | 50,000Hrs |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Power range | 10W-300W W | Catalog Extracted PDF page(s): 35 |
| Model variants | BS-FL15-B10W, BS-FL15-B20W, BS-FL15-B30W, BS-FL15-B50W, BS-FL15-B100W, BS-FL15-B150W, BS-FL15-B200W, BS-FL15-B250W, BS-FL15-B300W | Catalog Extracted PDF page(s): 35 |
| Input voltage | AC100-277V; 50/60Hz | Catalog Extracted PDF page(s): 35 |
| Luminous efficacy | 120LM/W (±5%) or 150LM/W (±5%) lm/W | Catalog Extracted PDF page(s): 35 |
| LED brand | LUMILEDS | Catalog Extracted PDF page(s): 35 |
| Driver brand | MEANWELL / SOSEN / ISHINELUX | Catalog Extracted PDF page(s): 35 |
| CCT | 3000K/4000K/5000K/5700K/6500K/3CCT Adjustable; 3000K/4000K/5700K or 4000K/5000K/6500K adjustable sets K | Catalog Extracted PDF page(s): 35 |
| CRI | Ra>80 (70,90 optional) | Catalog Extracted PDF page(s): 35 |
| Power factor | 0.95 | Catalog Extracted PDF page(s): 35 |
| Beam angle / distribution | 120° | Catalog Extracted PDF page(s): 35 |
| IP rating | IP66 | Catalog Extracted PDF page(s): 35 |
| IK rating | IK08 | Catalog Extracted PDF page(s): 35 |
| Lifespan | 50,000Hrs | Catalog Extracted PDF page(s): 35 |
| Working temperature | -25°C to +45°C | Catalog Extracted PDF page(s): 35 |
| Warranty | 5 Years | Catalog Extracted PDF page(s): 35 |
| Certification | ETL/CQC/CB/CE/ENEC/SAA/FCC/RoHS | Catalog Extracted PDF page(s): 35 |
| Control options | 1-10V, DALI, optional sensor model, 3CCT adjustable, power adjustable 100%-75%-50% | Catalog Extracted PDF page(s): 35 |
| Dimensions | 127*127*44mm; 148*148*44mm; 201*193*46mm; 247*237*47mm; 301*280*55mm; 358*320*61mm; 412*366*63mm; 486*406*69mm | Catalog Extracted PDF page(s): 35 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
dali
Zero To Ten V
Sensor Ready
1-10V, DALI, optional sensor model, 3CCT adjustable, power adjustable 100%-75%-50%
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
CB
CE
FCC
RoHS
ETL
CQC
ENEC
SAA
Evidence notes
- Technical specifications extracted from catalogue flood light section. datasheet
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
CCTOEM/ODMcctoemodmControl Logic
- MOQ
- Confirm for selected configuration
- Sample policy
- Confirm for selected configuration
- Sample lead time
- Confirm for selected configuration
- International lead time
- Confirm for selected configuration
- Warranty
- 5 Years
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Application areaNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 2 Mounting heightNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 3 Installation distanceNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 4 Target lux or uniformityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 5 Beam angle requirementNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 6 QuantityNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 7 Input voltageNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 8 CCTNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 9 Control methodNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 10 IP/IK or certification marketNeeded to confirm product selection, quotation, photometric fit or project configuration.
- 11 Drawing or site photo if availableNeeded to confirm product selection, quotation, photometric fit or project configuration.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Is BS-FL15 suitable for adjustable outdoor flood lighting projects?
BS-FL15 fits projects needing 10W-300W LED flood lights, IP66/IK08 protection, 120° beam, optional sensor mode, 1-10V/DALI options and 3CCT/power-adjustable configurations.
What should buyers confirm before ordering BS-FL15 LED Flood Light?
Confirm wattage, mounting height, beam angle, voltage, CCT/CRI, IP/IK requirement, control method, certification market, quantity and required photometric documents before RFQ.
Which evidence is still needed for BS-FL15 LED Flood Light?
Final datasheet, applicable certificates by market, IES/LDT photometric files and selected SKU details should be checked before using the page as a final specification reference.
Sources and methodology
Extracted from 2026-Besenled-industrial-4.pdf LED flood light section. PT Strong introduction pages were ignored. Technical claims require confirmation against final datasheet, certificate and selected SKU before publication.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
