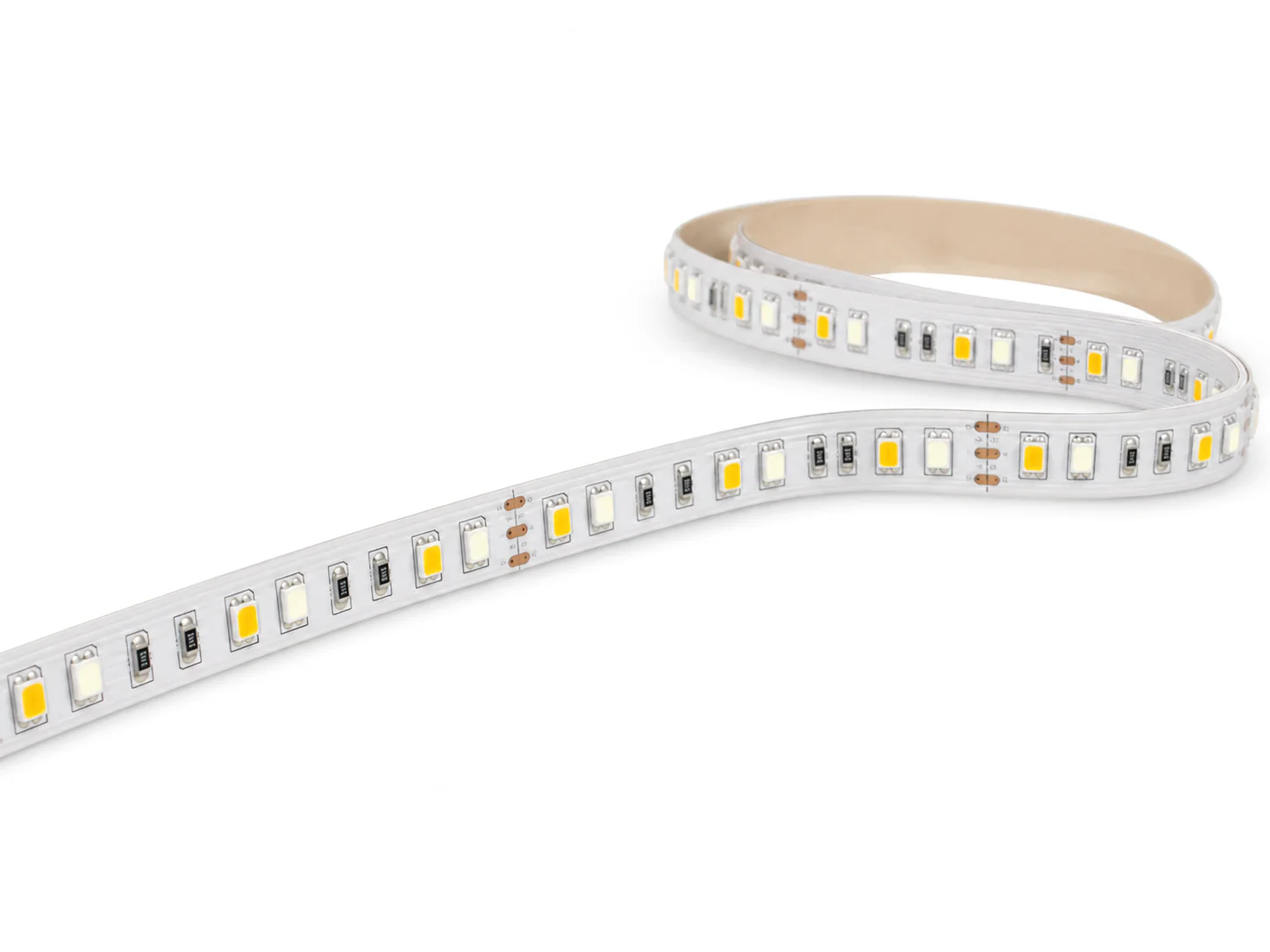

Besenled Tunable White CCT LED Strip Series
Which CCT adjustable LED strip fits tunable-white commercial lighting?
Besenled CCT strip series includes 3528, 5050, 2835, 3014 and 3527 options with 12V/24V variants, dual-white LED layouts and 4.2W-24W rated power classes.
Is This Product Right for Your Project?
Best For
Hospitality and residential mood lighting
Dual-white control supports warmer and cooler ambience.
Commercial cove and indirect lighting
Variant options cover multiple PCB widths and densities.
Smart control integration
Pairs with CCT dimmers/controllers after load confirmation.
Not Recommended For
Single fixed CCT low-cost projects
Use standard single-color strip.
Full RGB color effects
Use RGB/RGBW/RGBCCT strip series.
Electrical
| Input Voltage | 12V/24V DC |
| Wattage Range | 4.2W/m to 28.8W/m max |
| Driver Notes | Use constant-voltage LED drivers or compatible controllers according to selected strip/controller type; final wiring and load must be confirmed per project. |
Optical
| CRI | CRI 80+, CRI 90+; selected 3014/2835 options list CRI95+ |
| CCT Options | CCT adjustable / dual white |
Mechanical
| Dimensions | 8mm, 10mm, 12mm, 18mm |
| Install Notes | Confirm heat dissipation, driver capacity, maximum run length and profile/diffuser selection before order. |
Model Variants
| Model No. | Power | Dimension | CCT | CRI | Efficacy (lm/W) | Lifespan |
|---|---|---|---|---|---|---|
| 3528-120-CCT-12V/24V-10MM/8MM | 4.2W/m rated; 4.8W/m max | 8/10mm PCB | dual white | Ra80/Ra90 | 370 lm/m | 50,000h |
| 5050-120-CCT-24V-18MM | 24W/m rated; 28.8W/m max | 18mm PCB | dual white | Ra80/Ra90 | 1980 lm/m | 50,000h |
| 2835-192-CCT-24V-8MM | 16W/m rated; 19.2W/m max | 8mm PCB | dual white | Ra80/Ra90 | 1520 lm/m | 50,000h |
| 3014-224-CCT-24V-10MM | 16.8W/m rated; 23W/m max | 10mm PCB | dual white | Ra80/Ra90/Ra95 | 1640 lm/m | 50,000h |
Additional Specifications
| Input voltage | 12V/24V DC |
| LED package options | 3528, 5050, 2835, 3014, 3527 |
| Color options | CCT adjustable / dual white |
| CRI | CRI 80+, CRI 90+; selected 3014/2835 options list CRI95+ |
| Power range | 4.2W/m to 28.8W/m max W/m |
| PCB width | 8mm, 10mm, 12mm, 18mm |
Application Context
Tunable white cove, cabinet, hospitality and commercial ambient lighting
Problem This Product Solves
Buyers need warm-to-cool or dual-white LED strip options with RFQ-ready voltage, LED density and PCB specs.
Use Cases
Hospitality and residential mood lighting
Dual-white control supports warmer and cooler ambience.
Commercial cove and indirect lighting
Variant options cover multiple PCB widths and densities.
Smart control integration
Pairs with CCT dimmers/controllers after load confirmation.
Quick Facts
- ✓ CCT: CCT adjustable / dual white
- ✓ Product-dependent; confirm on quotation and final datasheet. warranty
- ✓ Certified: CE, RoHS
Project-dependent; confirm by selected model and customization scope.
Sample
needs_confirmation
International
needs_confirmation
Product-dependent; confirm on quotation and final datasheet.
Sample Policy
Samples can be quoted after confirming voltage, color, PCB width, waterproof/IP process and accessories.
Customization Options
Quote Basis
RFQ Required
What We Need for Your RFQ
→
Voltage and color type
Needed to select correct strip/controller/profile combination.
→
LED density, PCB width and length per run
Needed for power calculation, voltage drop and accessory matching.
→
IP/waterproof requirement and installation environment
Needed to choose bare strip, coating, silicone tube, extrusion or profile.
→
Driver/controller/control method
Needed to confirm dimming, RGB/RGBW/RGBCCT, 2.4G/RF/IR, DALI/DMX if required.
→
Quantity, packaging and certification market
Needed for MOQ, lead time and compliance confirmation.
Certifications
CE
RoHS
Evidence & Claims
✓
Product family and listed variants are extracted from Besenled catalogue or quotation source.
✓
Peer reference is used only for market classification and missing generic assumptions, not as product proof.
Sources & Methodology
Source file: /Users/raincai/Downloads/0-PT-Strong/员工工作报告/Product PT Strong Group (Part of BesenLED)/Besen led strip +neon catalog 2025pdf.pdf; source pages/sheets: 17-18. Structured as a B2B series product to avoid thin duplicate SKU URLs. Lightstec references consulted for common market taxonomy and missing-generic classification only: https://www.lightstec.com/, https://lightstec.com/led-strip-lights/, https://lightstec.com/cob-led-strip-light/, https://lightstec.com/led-strip-lights/smd-2835-series/, https://lightstec.com/china-flex-led-neon-light/, https://lightstec.com/led-aluminum-profiles/, https://lightstec.com/led-strip-light-controller/
2026-07-29
Frequently Asked Questions
Should this product be selected by exact SKU or by project requirement? +
Select by project requirement first: voltage, color type, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications? +
No. Peer references are used only to classify common market options and fill generic missing context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ? +
Voltage, color/CCT, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certification market and packaging requirement.
Key Takeaways
- → Use this page as the RFQ-ready family page; exact SKU choice depends on voltage, LED density, PCB width, color and installation condition.
- → Catalog values are treated as source facts; peer references are not used as Besenled test evidence.
- → Confirm final datasheet, certificate applicability and sample lead time before public final publication.
