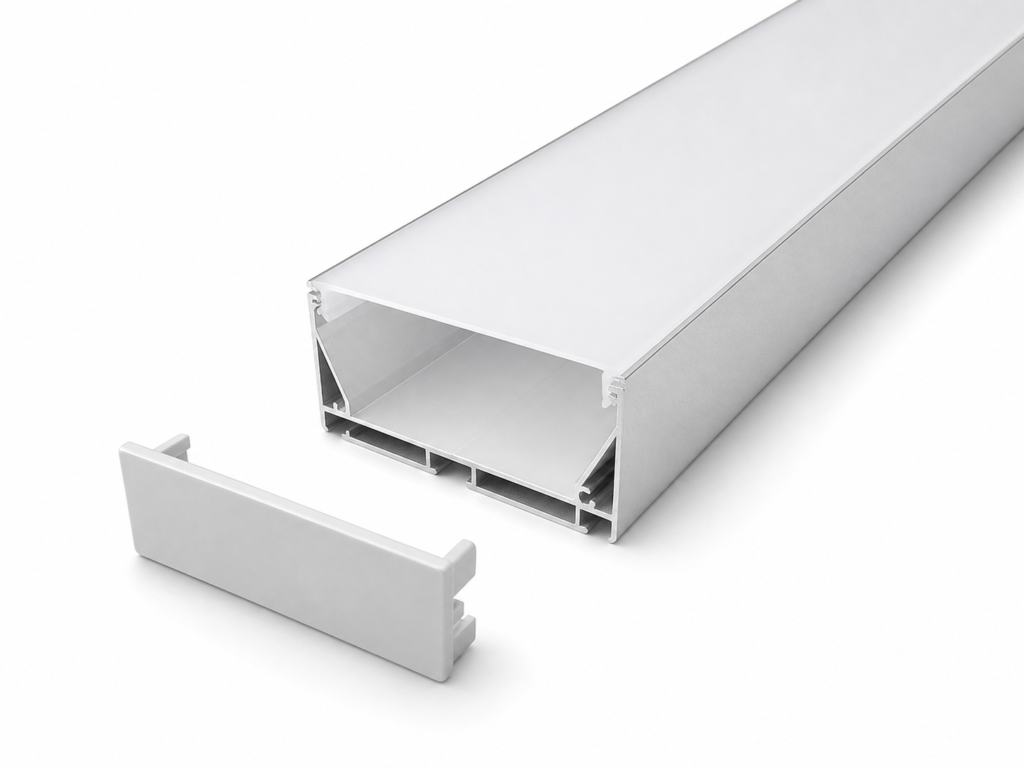

Besenled Surface LED Aluminum Profile Series
Which surface LED aluminum profile fits Besenled strip lighting?
Besenled surface aluminum profiles include compact BS-AT models such as BS-AT-101/102/103/105/108/120/121/122 with sizes from about 13x7mm to 20x20mm and PCB support around 10-12mm depending on model.
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Use this page as the RFQ-ready family page; exact SKU choice depends on voltage, LED density, PCB width, color and installation condition.
- Catalog values are treated as source facts; peer references are not used as Besenled test evidence.
- Confirm final datasheet, certificate applicability and sample lead time before public final publication.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Cabinet, shelf and cove strip installations Compact profiles protect strips and improve diffusion.
- Projects needing multiple small profile sizes BS-AT series covers common compact dimensions.
- RFQs requiring diffuser/end cap/accessory matching Quote can include aluminum, cover, end cap and magnetic options where applicable.
Confirm another option when
- Long pendant office linear fixtures Use office/pendant aluminum profile series.
- Outdoor waterproof neon contour lighting Use silicone neon flex instead.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Driver / control
- Use constant-voltage LED drivers or compatible controllers according to selected strip/controller type; final wiring and load must be confirmed per project.
Mechanical
- Dimensions
- 13x7mm to 24.5x7mm and 16x16mm/20x20mm compact options in selected rows
- Materials
- Extruded aluminum profile with optional PC/milky diffuser cover
- Mounting
- Surface / compact channel; exact clips/end caps by model
- Installation notes
- Confirm heat dissipation, driver capacity, maximum run length and profile/diffuser selection before order.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| BS-AT-101-A | profile only / quote basis | 15x20mm; PCB 12mm | n/a | n/a | n/a | n/a |
| BS-AT-101-B | profile only / quote basis | 17.5x20.5mm; PCB 12mm | n/a | n/a | n/a | n/a |
| BS-AT-102A | aluminum + milky cover | 24.5x7mm; PCB 12mm | n/a | n/a | n/a | n/a |
| BS-AT-103A | aluminum + milky cover | 17.5x7mm; PCB 12mm | n/a | n/a | n/a | n/a |
| BS-AT-105 | single aluminum; cover/accessories separate | 14.5x7mm; PCB 12mm | n/a | n/a | n/a | n/a |
| BS-AT-121/122 | aluminum + cover | 16x16mm or 20x20mm; PCB 10mm | n/a | n/a | n/a | n/a |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Material | Extruded aluminum profile with optional PC/milky diffuser cover | Aluminum Track Price 2026 sheet 硬灯条 |
| Profile dimensions | 13x7mm to 24.5x7mm and 16x16mm/20x20mm compact options in selected rows | Aluminum Track Price 2026 sheet 硬灯条 rows 1-14 |
| PCB compatibility | 10-12mm depending on profile model | Aluminum Track Price 2026 sheet 硬灯条 rows 1-14 |
| Cover options | Milky white / flat / half-round depending on model | Aluminum Track Price 2026 sheet 硬灯条 rows 3-14 |
| Mounting | Surface / compact channel; exact clips/end caps by model | Besenled quotation source; peer taxonomy confirms surface-mounted profile category |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
Compatible controller/driver depends on voltage, color type and project control requirement.
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Product family and listed variants are extracted from Besenled catalogue or quotation source. catalogue
- Peer reference is used only for market classification and missing generic assumptions, not as product proof. Peer Reference
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Project-dependent; confirm by selected model and customization scope.
- Sample policy
- Samples can be quoted after confirming voltage, color, PCB width, waterproof/IP process and accessories.
- Warranty
- Product-dependent; confirm on quotation and final datasheet.
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Voltage and color typeNeeded to select correct strip/controller/profile combination.
- 2 LED density, PCB width and length per runNeeded for power calculation, voltage drop and accessory matching.
- 3 IP/waterproof requirement and installation environmentNeeded to choose bare strip, coating, silicone tube, extrusion or profile.
- 4 Driver/controller/control methodNeeded to confirm dimming, RGB/RGBW/RGBCCT, 2.4G/RF/IR, DALI/DMX if required.
- 5 Quantity, packaging and certification marketNeeded for MOQ, lead time and compliance confirmation.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Should this product be selected by exact SKU or by project requirement?
Select by project requirement first: voltage, color type, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications?
No. Peer references are used only to classify common market options and fill generic missing context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ?
Voltage, color/CCT, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certification market and packaging requirement.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
