LED Neon Flex

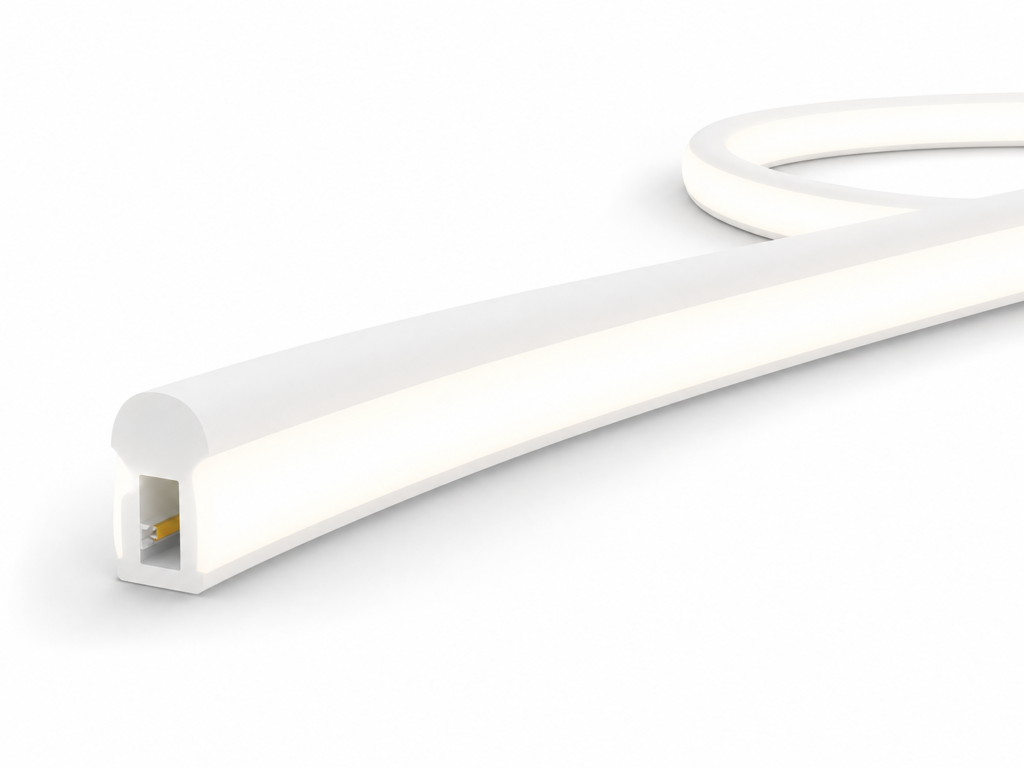

Besenled Silicone Neon Flex Series

Which silicone neon flex size should be selected for architectural contour lighting?

Besenled silicone neon flex options include 5x10, 6x13, 8x17, 13x11.5 round and 10x22mm types using 2835 or 5050 strips in 12V/24V and 7-15W/m classes.

Power: 7-15W/m
Input: 12V/24V DC
CCT: WW/NW/W/R/G/B/Y/Pink; RGB for 10x22 option
Protection: Confirm for selected configuration

Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.

Decision summary

What buyers should know

Use this page as the RFQ-ready family page; exact SKU choice depends on voltage, LED density, PCB width, color and installation condition.
Catalog values are treated as source facts; peer references are not used as Besenled test evidence.
Confirm final datasheet, certificate applicability and sample lead time before public final publication.

Buyer fit

Where this product fits—and where it does not

Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.

Best for

Architectural outlines and signage Silicone extrusion creates a continuous neon-like light line.
Projects needing multiple profile sizes The family lists compact, round and larger sizes.
Indoor/outdoor decorative linear lighting Waterproof process and IP rating need final confirmation by selected model.

Confirm another option when

High-output general task lighting Use linear fixture/profile systems instead.
Projects requiring exact bending radius before sample Bending direction and radius must be confirmed from datasheet/sample.

Technical selection

Specifications and available variants

Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.

Electrical

Input voltage: 12V/24V DC
Power range: 7-15W/m
Driver / control: Use constant-voltage LED drivers or compatible controllers according to selected strip/controller type; final wiring and load must be confirmed per project.

Optical

CCT options: WW/NW/W/R/G/B/Y/Pink; RGB for 10x22 option

Mechanical

Dimensions: 5x10, 6x13, 8x17, 13x11.5 round, 10x22; additional tube/extrusion sizes shown on catalogue pages
IP rating: Confirm for selected configuration
Installation notes: Confirm heat dissipation, driver capacity, maximum run length and profile/diffuser selection before order.

Model and variant matrix

Model / Variant	Power	Dimension	CCT	CRI	Efficacy	Lifespan
Neon Flex 5x10mm	7W/m	5x10mm; 5mm PCB	WW/NW/W/R/G/B/Y/Pink	not specified	Confirm for selected configuration	50,000h
Neon Flex 6x13mm	10W/m	6x13mm; 8mm PCB	WW/NW/W/R/G/B/Y/Pink	not specified	Confirm for selected configuration	50,000h
Neon Flex 8x17mm	13W/m	8x17mm; 10mm PCB	WW/NW/W/R/G/B/Y/Pink	not specified	Confirm for selected configuration	50,000h
Neon Flex 13x11.5 round	15W/m	13x11.5mm round; 8mm PCB	WW/NW/W/R/G/B/Y/Pink	not specified	Confirm for selected configuration	50,000h
Neon Flex 10x22 RGB	12W/m	10x22mm; 10mm PCB	RGB	not specified	Confirm for selected configuration	50,000h

Detailed specification reference

Parameter	Value	Condition / Evidence
Input voltage	12V/24V DC	catalog page 37
Neon size options	5x10, 6x13, 8x17, 13x11.5 round, 10x22; additional tube/extrusion sizes shown on catalogue pages	catalog pages 36-37
LED package options	2835 or 5050	catalog page 37
LED density	60, 120, 180 LEDs/m	by size and color type catalog page 37
Power range	7-15W/m W/m	by listed neon size catalog page 37
Color options	WW/NW/W/R/G/B/Y/Pink; RGB for 10x22 option	catalog page 37
IP rating	Confirm for selected configuration	Catalog shows silicone neon category; exact IP must be confirmed by construction/process

Smart and project integration

Control compatibility

Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.

Compatible controller/driver depends on voltage, color type and project control requirement.

Evidence and documents

Compliance, catalogues and specification evidence

Certificate applicability and document revision must match the ordered configuration and destination market.

CE RoHS

Evidence notes

Product family and listed variants are extracted from Besenled catalogue or quotation source. catalogue
Peer reference is used only for market classification and missing generic assumptions, not as product proof. Peer Reference

B2B procurement

Prepare a quote-ready request

Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.

Customization scope

LogoCCTNeutral PackagingBranded PackagingOEM/ODMlogocctpackagingoemodm

MOQ: Project-dependent; confirm by selected model and customization scope.
Sample policy: Samples can be quoted after confirming voltage, color, PCB width, waterproof/IP process and accessories.
Warranty: Product-dependent; confirm on quotation and final datasheet.
Quote basis: Rfq Required

Information needed for RFQ

1 Voltage and color typeNeeded to select correct strip/controller/profile combination.
2 LED density, PCB width and length per runNeeded for power calculation, voltage drop and accessory matching.
3 IP/waterproof requirement and installation environmentNeeded to choose bare strip, coating, silicone tube, extrusion or profile.
4 Driver/controller/control methodNeeded to confirm dimming, RGB/RGBW/RGBCCT, 2.4G/RF/IR, DALI/DMX if required.
5 Quantity, packaging and certification marketNeeded for MOQ, lead time and compliance confirmation.

Application path

FAQ and source notes

Last fact checked: July 29, 2026

Should this product be selected by exact SKU or by project requirement?

Select by project requirement first: voltage, color type, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.

Are peer-reference values final Besenled specifications?

No. Peer references are used only to classify common market options and fill generic missing context. Final specs need Besenled datasheet or sample confirmation.

What information is needed for an RFQ?

Voltage, color/CCT, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certification market and packaging requirement.
