LED Strip Lights

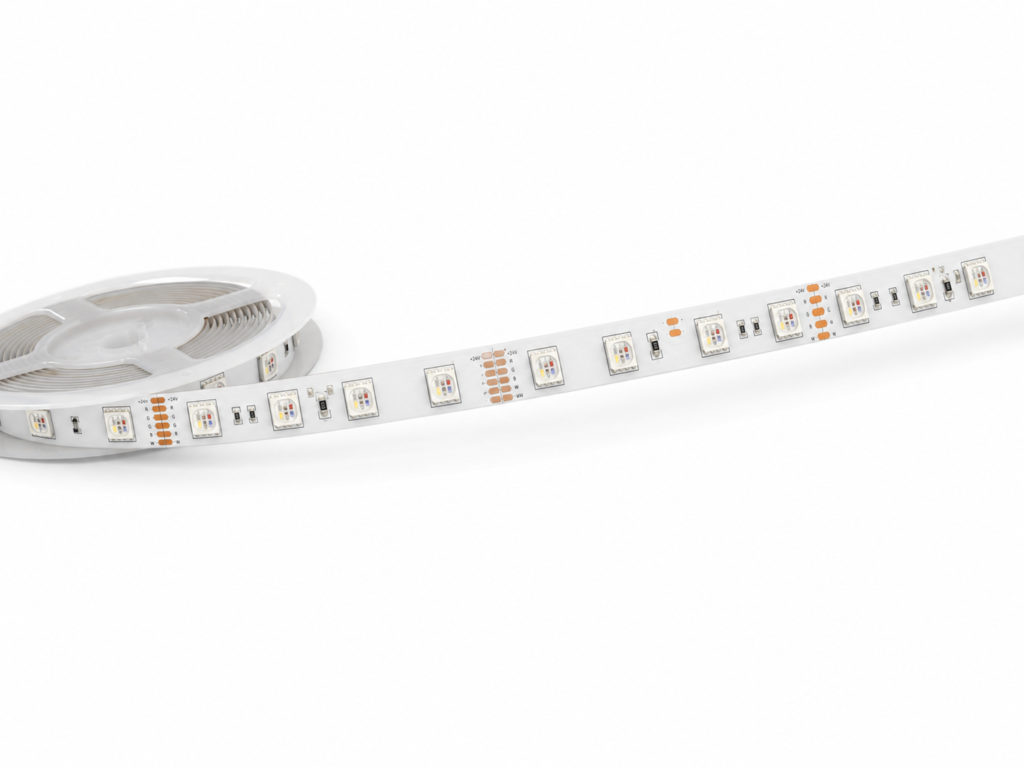

Besenled RGB RGBW RGBCCT LED Strip Series
Which Besenled color LED strip should be selected for RGB/RGBW/RGBCCT projects?
Use this series when the project needs color-changing strip lighting: 5050/3535/3838 options, 5V/12V/24V variants, RGB/RGBW/RGBCCT layouts and controller-dependent operation.
- Power
- about 6.5W/m to 28.8W/m max
- Input
- 5V/12V/24V DC
- CCT
- RGB, RGBW, RGBCCT
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Use this page as the RFQ-ready family page; exact SKU choice depends on voltage, LED density, PCB width, color and installation condition.
- Catalog values are treated as source facts; peer references are not used as Besenled test evidence.
- Confirm final datasheet, certificate applicability and sample lead time before public final publication.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Retail, hospitality and accent lighting Color-changing output supports scene and ambience control.
- Smart strip lighting RFQs Variants align with RGB, RGBW and RGBCCT controller categories.
- Projects needing 5V/12V/24V choices Includes common voltage classes.
Confirm another option when
- Fixed white commercial lighting Use single-color or CCT strip series.
- Individually addressable pixel effects Use Magic/Digital LED strip series.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Electrical
- Input voltage
- 5V/12V/24V DC
- Power range
- about 6.5W/m to 28.8W/m max
- Driver / control
- Use constant-voltage LED drivers or compatible controllers according to selected strip/controller type; final wiring and load must be confirmed per project.
Optical
- CCT options
- RGB, RGBW, RGBCCT
Mechanical
- Dimensions
- 8mm, 10mm, 12mm, 15mm
- Installation notes
- Confirm heat dissipation, driver capacity, maximum run length and profile/diffuser selection before order.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| 5050-30-RGB-12V/24V-10MM | 6.5-7.5W/m rated | 10mm PCB | RGB | not specified | 150-160 lm/m | 50,000h |
| 5050-60-RGB-12V/24V-10MM | 13W/m rated; 14.4W/m max | 10mm PCB | RGB | not specified | 310 lm/m | 50,000h |
| 5050-60-RGBW-12V/24V-12MM | 13-15W/m rated | 12mm PCB | RGBW | not specified | 750-840 lm/m white channel condition | 50,000h |
| 5050-60-RGB/CCT-24V-12MM | 19.2W/m rated; 24W/m max | 12mm PCB | RGBCCT | not specified | 768 lm/m | 50,000h |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Input voltage | 5V/12V/24V DC | catalog pages 29-31 |
| Color options | RGB, RGBW, RGBCCT | catalog pages 24,29-31 |
| LED package options | 5050, 3535, 3838 | catalog pages 29-31 |
| PCB width | 8mm, 10mm, 12mm, 15mm | catalog pages 29-31 |
| Power range | about 6.5W/m to 28.8W/m max W/m | catalog pages 24,29-31 |
| Control requirement | Requires compatible RGB/RGBW/RGBCCT controller and correctly sized power supply | catalog page 40 and peer-reference controller taxonomy |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
Compatible controller/driver depends on voltage, color type and project control requirement.
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Product family and listed variants are extracted from Besenled catalogue or quotation source. catalogue
- Peer reference is used only for market classification and missing generic assumptions, not as product proof. Peer Reference
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Project-dependent; confirm by selected model and customization scope.
- Sample policy
- Samples can be quoted after confirming voltage, color, PCB width, waterproof/IP process and accessories.
- Warranty
- Product-dependent; confirm on quotation and final datasheet.
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Voltage and color typeNeeded to select correct strip/controller/profile combination.
- 2 LED density, PCB width and length per runNeeded for power calculation, voltage drop and accessory matching.
- 3 IP/waterproof requirement and installation environmentNeeded to choose bare strip, coating, silicone tube, extrusion or profile.
- 4 Driver/controller/control methodNeeded to confirm dimming, RGB/RGBW/RGBCCT, 2.4G/RF/IR, DALI/DMX if required.
- 5 Quantity, packaging and certification marketNeeded for MOQ, lead time and compliance confirmation.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Should this product be selected by exact SKU or by project requirement?
Select by project requirement first: voltage, color type, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications?
No. Peer references are used only to classify common market options and fill generic missing context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ?
Voltage, color/CCT, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certification market and packaging requirement.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
