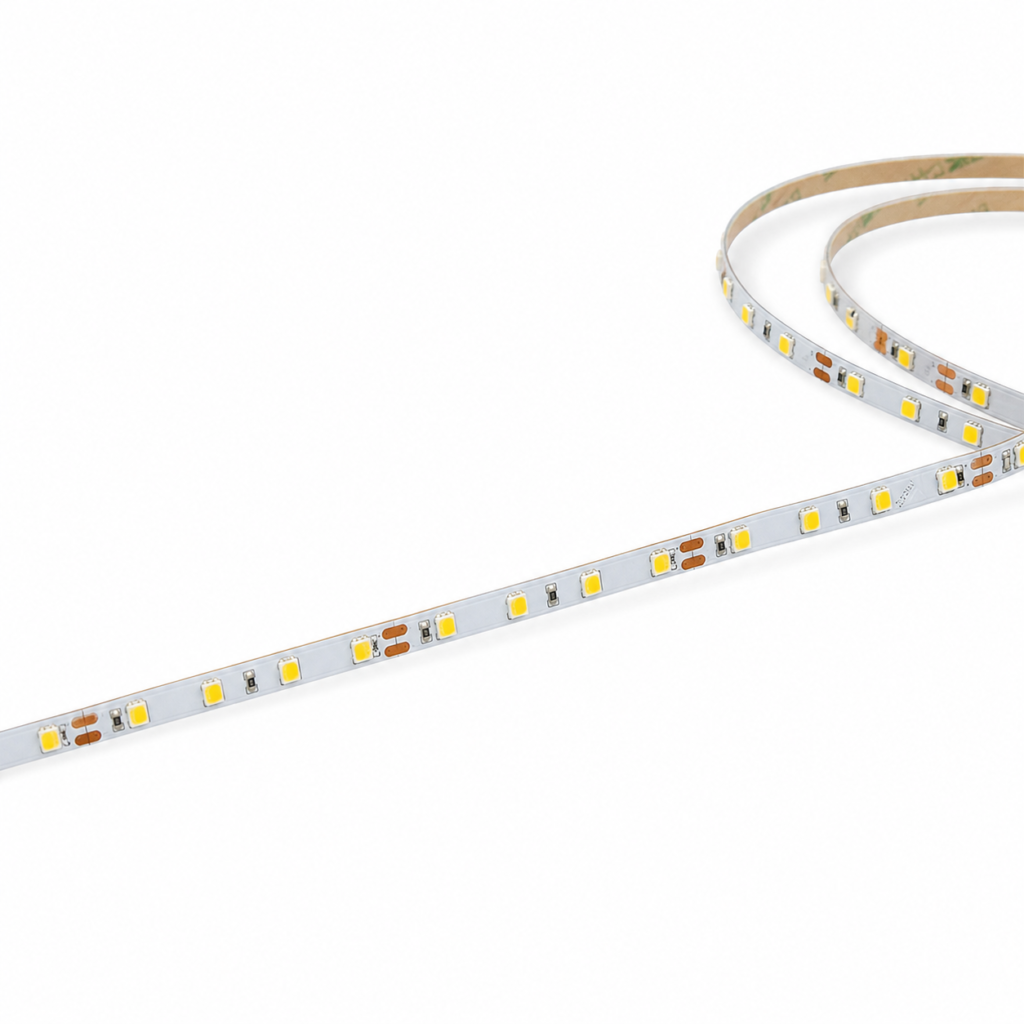

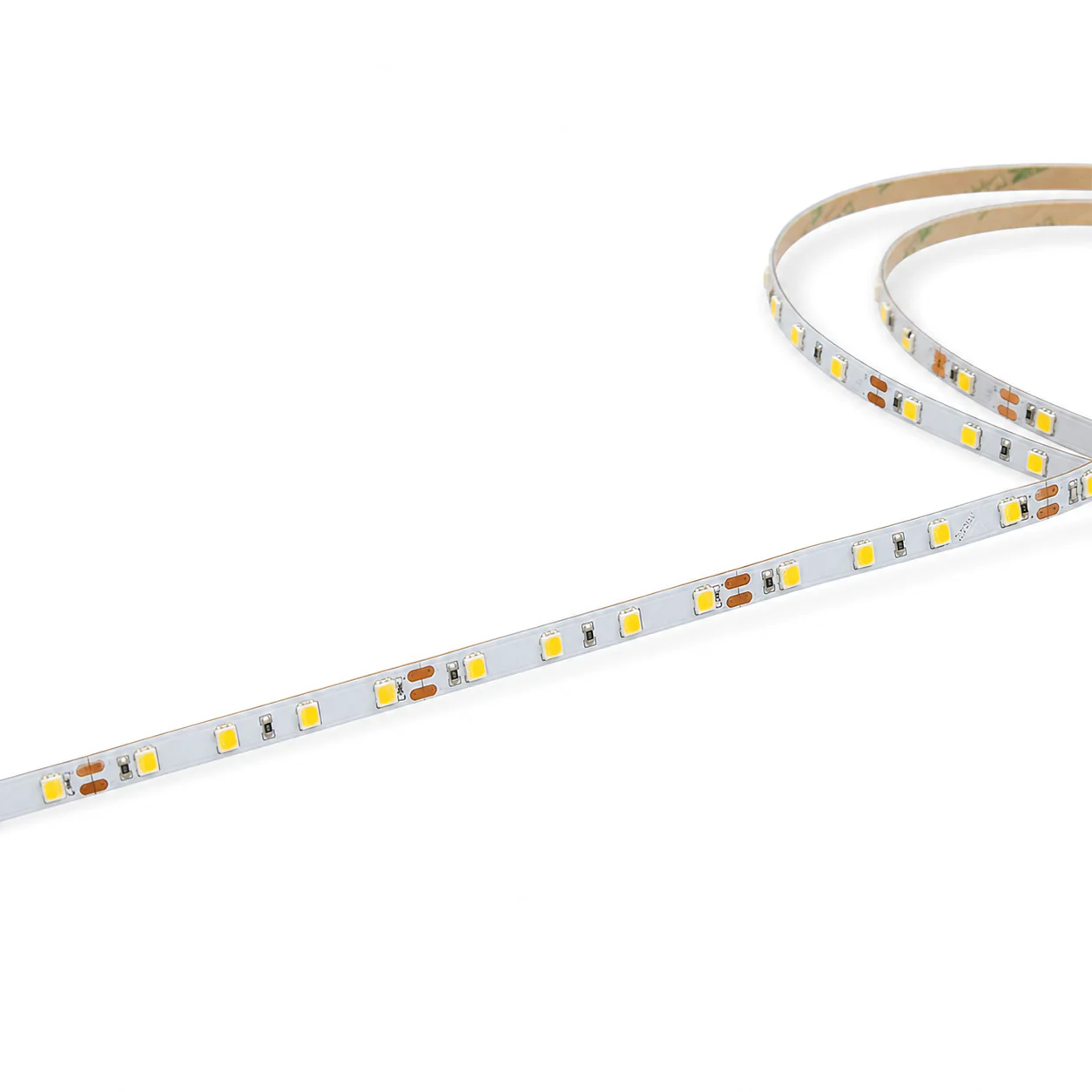

Besenled 5mm Narrow PCB LED Strip Series
Which Besenled 5mm narrow LED strip fits tight channels or mini profiles?
Besenled 5mm PCB strip options include 3528, 2835, 3014 and 2216 variants, 60-240 LEDs/m, 12V/24V options, 5mm PCB width and CCT ranges from 1800K-7000K depending on package family.
Is This Product Right for Your Project?
Buyers need very slim 5mm PCB strips for tight spaces where standard 8-10mm strips do not fit.
Best For
Mini aluminum profiles and narrow grooves
5mm PCB fits spaces where standard 8mm/10mm strips do not.
Cabinet, furniture and display shelves
Slim width supports discreet linear lighting.
OEM/ODM compact linear products
Multiple package families and density classes support custom integration.
Not Recommended For
Wide high-output runs without thermal path
Narrow PCB has tighter thermal and current constraints.
Projects requiring standard strip connectors without checking clearance
5mm width needs compatible connector/accessory confirmation.
Mechanical
| Dimensions | 5mm PCB; 1.2mm or 1.8mm slim package thickness by model |
| Materials | white flexible PCB |
| IP Rating | needs_confirmation |
| Mounting | mini profile, narrow groove, cabinet channel or adhesive mounting |
| Install Notes | Confirm profile inner width, bending, heat path and connector clearance before order. |
Model Variants
| Model No. | Power | Dimension | CCT | CRI | Efficacy (lm/W) | Lifespan |
|---|---|---|---|---|---|---|
| 3528-60-12V-5MM | 4.2W/m rated; 4.8W/m max | 5mm PCB | 2000K-6500K | Ra80+/Ra90+ | 390-450 lm/m typical flux | needs_confirmation |
| 2835-120-12V/24V-5MM | 7W/m rated; 24W/m max | 5mm PCB | 2200K-7000K | Ra80+/Ra90+ | 1000-1200 lm/m typical flux | needs_confirmation |
| 3014-120-12V/24V-5MM | 9.6W/m rated; 14.4W/m max | 5mm PCB | 2200K-6500K | Ra80+/Ra90+ | 900-1050 lm/m typical flux | needs_confirmation |
| 2216-240-12V/24V-5MM | 9.6W/m rated; 38.4W/m max | 5mm PCB | 1800K-7000K | Ra90+ | 960-1080 lm/m typical flux | needs_confirmation |
Additional Specifications
| PCB width | 5mm (all listed variants) |
| LED families | 3528, 2835, 3014, 2216 (listed options) |
| LED density | 60-240 LEDs/m (by model) |
| Input voltage | 12V/24V DC or 24V DC (by model) |
| CCT | 1800K-7000K (by LED family/model) |
| Typical flux | 390-1200 lm/m (selected visible listed models; high-density values by model) |
Application Context
Narrow channel lighting, cabinet slots, mini profiles, furniture and display lighting
Use Cases
Mini aluminum profiles and narrow grooves
5mm PCB fits spaces where standard 8mm/10mm strips do not.
Cabinet, furniture and display shelves
Slim width supports discreet linear lighting.
OEM/ODM compact linear products
Multiple package families and density classes support custom integration.
Quick Facts
- ✓ IP Rating: needs_confirmation
- ✓ Product-dependent; confirm on quotation and final datasheet. warranty
- ✓ Certified: CE, RoHS
Project-dependent; confirm by selected model and customization scope.
Sample
needs_confirmation
International
needs_confirmation
Product-dependent; confirm on quotation and final datasheet.
Sample Policy
Samples can be quoted after confirming voltage, color/CCT, PCB width, waterproof/IP process and accessories.
Customization Options
Quote Basis
RFQ Required
What We Need for Your RFQ
→
Voltage and color/CCT/CRI requirement
Needed to select the correct strip variant and compatible driver/controller.
→
LED density, PCB width and length per run
Needed for power calculation, voltage drop, aluminum profile matching and accessory selection.
→
Installation environment and IP requirement
Needed to choose bare strip, coating, silicone sleeve, neon flex or profile protection.
→
Quantity, packaging and destination market
Needed for MOQ, lead time and certificate coverage check.
Certifications
CE
RoHS
Evidence & Claims
✓
Product family and listed variants are extracted from Besenled catalogue source pages.
✓
Peer reference is used only for market taxonomy and missing generic assumptions, not as product proof.
Sources & Methodology
Source file: /Users/raincai/Downloads/0-PT-Strong/员工工作报告/Product PT Strong Group (Part of BesenLED)/Besen led strip +neon catalog 2025pdf.pdf; source pages: 25-27. Structured as a B2B series product to avoid thin duplicate SKU URLs. Lightstec references consulted only for common LED strip market taxonomy and missing-generic classification: https://www.lightstec.com/; https://lightstec.com/led-strip-lights/; https://lightstec.com/led-strip-lights/smd-2835-series/. Peer reference is not used as Besenled product proof.
2026-07-29
Frequently Asked Questions
Should this product be selected by exact SKU or by project requirement? +
Select by project requirement first: voltage, color/CCT, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications? +
No. Peer references are used only to classify common market options and missing generic context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ? +
Voltage, CCT/color type, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certificate market and packaging requirement.
Key Takeaways
- → Use this page as an RFQ-ready product-family page; select exact SKU by voltage, LED density, PCB width, CCT/CRI, IP process and run length.
- → Catalogue values are treated as Besenled source facts; peer references are not used as Besenled test evidence.
- → Items marked needs_confirmation require final datasheet, certificate or sales confirmation before public final publication.
Related Resources
Product Hub
Browse all products
Solutions
Project solutions
Applications
By building type
Guides
Buying & spec guides
Similar Products
196lm/W High Bright 2835 LED Strip Light
The 2835 High-Efficiency LED Strip Light is designed for superior brightness and flexibility, delivering an impressive 196 lumens per watt (lm/W).
BS-SLE630 LED Street Light
50W-300W LED street light with tool-free access, IP66 protection and DALI/photocell/timer options.

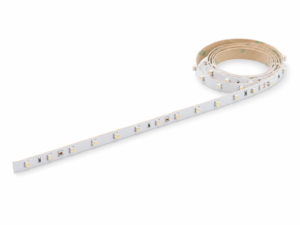

Besenled 335 Side View LED Strip Light Series
