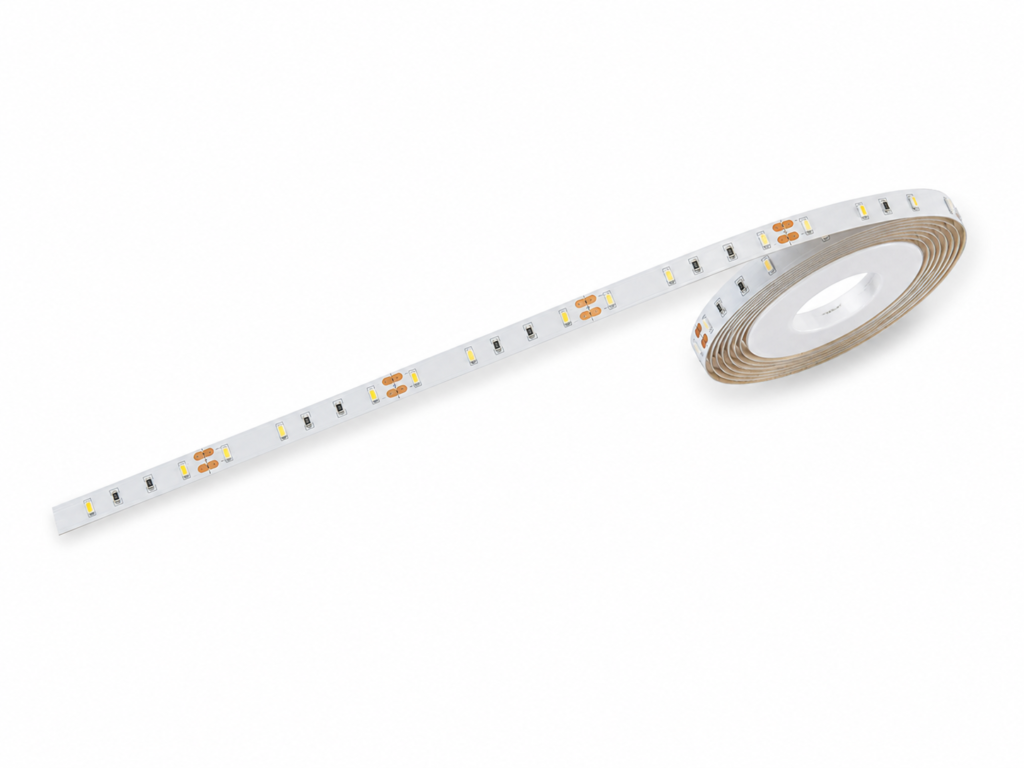

Besenled 3014 SMD LED Strip Light Series
Which Besenled 3014 LED strip density should be used for bright linear lighting?
Besenled 3014 strip variants cover 60-240 LEDs/m, 12V/24V or 24V options, 8mm/10mm PCB widths, 2200K-6500K CCT and rated power classes from about 6.5W/m to 16.8W/m.
Is This Product Right for Your Project?
Buyers need a higher-output slim SMD strip with many density choices and 8/10mm PCB options.
Best For
Architectural linear lighting
Flexible strip format supports profile, cove and cabinet integration.
OEM/ODM project specification
Series-level variants help buyers compare voltage, density, PCB width and light output before RFQ.
Distributor product selection
The page groups close SKU variants into one indexable product-family record.
Not Recommended For
Final purchasing without datasheet confirmation
Some values depend on exact SKU, batch, IP process and LED bin.
Outdoor exposed installation without IP process
Bare strip applications need profile, coating, silicone or neon protection as required.
Mechanical
| Dimensions | 8mm / 10mm PCB; 1.8mm slim thickness noted in catalogue |
| Materials | white flexible PCB |
| IP Rating | needs_confirmation |
| Mounting | profile, adhesive or project-specific mounting |
| Install Notes | Use profile/heat path for higher power variants and confirm voltage drop. |
Model Variants
| Model No. | Power | Dimension | CCT | CRI | Efficacy (lm/W) | Lifespan |
|---|---|---|---|---|---|---|
| 3014-60-12V/24V-8MM/10MM | 6.5W/m rated; 7.2W/m max | 8mm or 10mm PCB | 2200K-6500K | Ra80+/Ra90+ | 620-730 lm/m typical flux | needs_confirmation |
| 3014-120-12V/24V-8MM/10MM | 13W/m rated; 14.4W/m max | 8mm or 10mm PCB | 2200K-6500K | Ra80+/Ra90+ | 1250-1450 lm/m typical flux | needs_confirmation |
| 3014-204-24V-10MM | 16.8W/m rated; 24W/m max | 10mm PCB | 2200K-6500K | Ra80+/Ra90+ | 1600-1890 lm/m typical flux | needs_confirmation |
| 3014-240-12V/24V-10MM | 16.8W/m rated; 28.8W/m max | 10mm PCB | 2200K-6500K | Ra80+/Ra90+ | 1660-2000 lm/m typical flux | needs_confirmation |
Additional Specifications
| Input voltage | 12V/24V DC or 24V DC (by model) |
| LED density | 60, 70, 120, 140, 204, 240 LEDs/m |
| PCB width | 8mm or 10mm (by model) |
| CCT | 2200K-6500K (white light options) |
| CRI | Ra80+ / Ra90+ (available options) |
| Typical flux | 610-2000 lm/m (by model and CCT) |
Application Context
Commercial indoor linear lighting, cabinets, retail shelves, profiles and coves
Use Cases
Architectural linear lighting
Flexible strip format supports profile, cove and cabinet integration.
OEM/ODM project specification
Series-level variants help buyers compare voltage, density, PCB width and light output before RFQ.
Distributor product selection
The page groups close SKU variants into one indexable product-family record.
Quick Facts
- ✓ IP Rating: needs_confirmation
- ✓ Product-dependent; confirm on quotation and final datasheet. warranty
- ✓ Certified: CE, RoHS
Project-dependent; confirm by selected model and customization scope.
Sample
needs_confirmation
International
needs_confirmation
Product-dependent; confirm on quotation and final datasheet.
Sample Policy
Samples can be quoted after confirming voltage, color/CCT, PCB width, waterproof/IP process and accessories.
Customization Options
Quote Basis
RFQ Required
What We Need for Your RFQ
→
Voltage and color/CCT/CRI requirement
Needed to select the correct strip variant and compatible driver/controller.
→
LED density, PCB width and length per run
Needed for power calculation, voltage drop, aluminum profile matching and accessory selection.
→
Installation environment and IP requirement
Needed to choose bare strip, coating, silicone sleeve, neon flex or profile protection.
→
Quantity, packaging and destination market
Needed for MOQ, lead time and certificate coverage check.
Certifications
CE
RoHS
Evidence & Claims
✓
Product family and listed variants are extracted from Besenled catalogue source pages.
✓
Peer reference is used only for market taxonomy and missing generic assumptions, not as product proof.
Sources & Methodology
Source file: /Users/raincai/Downloads/0-PT-Strong/员工工作报告/Product PT Strong Group (Part of BesenLED)/Besen led strip +neon catalog 2025pdf.pdf; source pages: 12-14, 22-23. Structured as a B2B series product to avoid thin duplicate SKU URLs. Lightstec references consulted only for common LED strip market taxonomy and missing-generic classification: https://www.lightstec.com/; https://lightstec.com/led-strip-lights/; https://lightstec.com/led-strip-lights/smd-2835-series/. Peer reference is not used as Besenled product proof.
2026-07-29
Frequently Asked Questions
Should this product be selected by exact SKU or by project requirement? +
Select by project requirement first: voltage, color/CCT, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications? +
No. Peer references are used only to classify common market options and missing generic context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ? +
Voltage, CCT/color type, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certificate market and packaging requirement.
Key Takeaways
- → Use this page as an RFQ-ready product-family page; select exact SKU by voltage, LED density, PCB width, CCT/CRI, IP process and run length.
- → Catalogue values are treated as Besenled source facts; peer references are not used as Besenled test evidence.
- → Items marked needs_confirmation require final datasheet, certificate or sales confirmation before public final publication.
Related Resources
Product Hub
Browse all products
Solutions
Project solutions
Applications
By building type
Guides
Buying & spec guides
Similar Products
Besenled Magic Digital LED Strip Series
Addressable Magic/Digital LED strip series using IC options such as 2811/1903, 2812/6812, 2904 and 16704.
Besenled LED Strip Controller Series
Controller and dimmer accessory family for single-color, CCT, RGB, RGBW and RGB+CCT LED strip systems.
Besenled Tunable White CCT LED Strip Series
Tunable white CCT strip family for projects requiring adjustable color temperature and dual-white control.

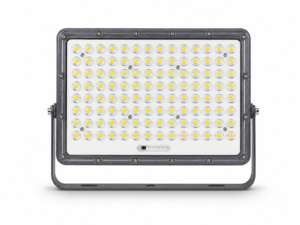

BS-CLAS LED Floodlight
