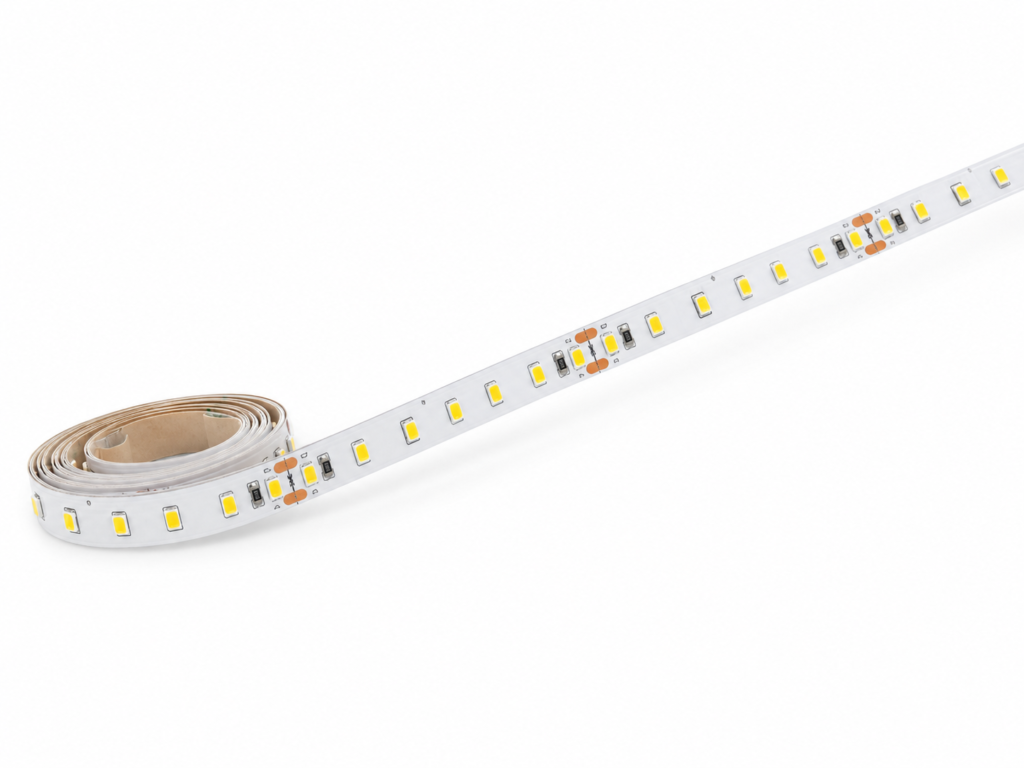

Besenled 2835 SMD LED Strip Light Series
Which 2835 LED strip options should be used for commercial linear lighting?
Besenled 2835 strip options cover 12V/24V, 30-240 LEDs/m, 5-16mm PCB widths, CRI 80+/90+ and multiple power classes for commercial and OEM strip projects.
Is This Product Right for Your Project?
Best For
Standard white LED strip RFQs
2835 is a common high-output SMD strip family with many density choices.
Cove, shelf and signage projects
Multiple PCB widths and cut lengths support installation constraints.
OEM projects needing variant breadth
The series can be customized by voltage, CRI, CCT, PCB and packaging.
Not Recommended For
Dot-free visible-line applications
COB or neon flex may be better.
Full color RGB/RGBW control
Use RGB/RGBW/RGBCCT strip series.
Electrical
| Input Voltage | 12V/24V DC |
| Wattage Range | about 4.8W/m to 57.6W/m max |
| Driver Notes | Use constant-voltage LED drivers or compatible controllers according to selected strip/controller type; final wiring and load must be confirmed per project. |
Optical
| CRI | CRI 80+ and CRI 90+ available |
| CCT Options | 2200K-7000K white |
Mechanical
| Dimensions | 5mm, 8mm, 10mm, 12mm, 16mm |
| Install Notes | Confirm heat dissipation, driver capacity, maximum run length and profile/diffuser selection before order. |
Model Variants
| Model No. | Power | Dimension | CCT | CRI | Efficacy (lm/W) | Lifespan |
|---|---|---|---|---|---|---|
| 2835-60-12V/24V-8MM | 13W/m rated; 14.4W/m max | 8mm PCB | 2200K-7000K | Ra80/Ra90 | 1350-1630 lm/m | 50,000h |
| 2835-120-12V/24V-8MM | 14.4W/m rated; 28.8W/m max | 8mm PCB | 2200K-7000K | Ra80/Ra90 | 1500-1800 lm/m | 50,000h |
| 2835-180/182-12V/24V-8MM | 14.4-16.8W/m rated | 8mm PCB | 2200K-7000K | Ra80/Ra90 | 1500-2450 lm/m | 50,000h |
| 2835-240-12V/24V-12MM | 19.2W/m rated; 57.6W/m max | 12mm PCB | 2200K-7000K | Ra80/Ra90 | 2000-2400 lm/m | 50,000h |
Additional Specifications
| Input voltage | 12V/24V DC |
| LED density | 30, 36, 60, 70, 112, 120, 144, 156, 180/182, 240 LEDs/m (catalog family range) |
| PCB width | 5mm, 8mm, 10mm, 12mm, 16mm |
| CCT options | 2200K-7000K white |
| CRI | CRI 80+ and CRI 90+ available |
| Power range | about 4.8W/m to 57.6W/m max W/m (by density/voltage) |
| Cut length | 12.5mm to 166.7mm depending on voltage/density |
Application Context
Commercial linear lighting, cove lighting, signage and OEM strip projects
Problem This Product Solves
Buyers need common white LED strip options across voltage, density and PCB width.
Use Cases
Standard white LED strip RFQs
2835 is a common high-output SMD strip family with many density choices.
Cove, shelf and signage projects
Multiple PCB widths and cut lengths support installation constraints.
OEM projects needing variant breadth
The series can be customized by voltage, CRI, CCT, PCB and packaging.
Quick Facts
- ✓ CCT: 2200K-7000K white
- ✓ Product-dependent; confirm on quotation and final datasheet. warranty
- ✓ Certified: CE, RoHS
Project-dependent; confirm by selected model and customization scope.
Sample
needs_confirmation
International
needs_confirmation
Product-dependent; confirm on quotation and final datasheet.
Sample Policy
Samples can be quoted after confirming voltage, color, PCB width, waterproof/IP process and accessories.
Customization Options
Quote Basis
RFQ Required
What We Need for Your RFQ
→
Voltage and color type
Needed to select correct strip/controller/profile combination.
→
LED density, PCB width and length per run
Needed for power calculation, voltage drop and accessory matching.
→
IP/waterproof requirement and installation environment
Needed to choose bare strip, coating, silicone tube, extrusion or profile.
→
Driver/controller/control method
Needed to confirm dimming, RGB/RGBW/RGBCCT, 2.4G/RF/IR, DALI/DMX if required.
→
Quantity, packaging and certification market
Needed for MOQ, lead time and compliance confirmation.
Certifications
CE
RoHS
Evidence & Claims
✓
Product family and listed variants are extracted from Besenled catalogue or quotation source.
✓
Peer reference is used only for market classification and missing generic assumptions, not as product proof.
Sources & Methodology
Source file: /Users/raincai/Downloads/0-PT-Strong/员工工作报告/Product PT Strong Group (Part of BesenLED)/Besen led strip +neon catalog 2025pdf.pdf; source pages/sheets: 10-11, 20-22, 26. Structured as a B2B series product to avoid thin duplicate SKU URLs. Lightstec references consulted for common market taxonomy and missing-generic classification only: https://www.lightstec.com/, https://lightstec.com/led-strip-lights/, https://lightstec.com/cob-led-strip-light/, https://lightstec.com/led-strip-lights/smd-2835-series/, https://lightstec.com/china-flex-led-neon-light/, https://lightstec.com/led-aluminum-profiles/, https://lightstec.com/led-strip-light-controller/ Peer reference used only for market taxonomy and missing generic assumptions: 2835 strip market taxonomy checked against Lightstec SMD 2835 series.
2026-07-29
Frequently Asked Questions
Should this product be selected by exact SKU or by project requirement? +
Select by project requirement first: voltage, color type, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications? +
No. Peer references are used only to classify common market options and fill generic missing context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ? +
Voltage, color/CCT, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certification market and packaging requirement.
Key Takeaways
- → Use this page as the RFQ-ready family page; exact SKU choice depends on voltage, LED density, PCB width, color and installation condition.
- → Catalog values are treated as source facts; peer references are not used as Besenled test evidence.
- → Confirm final datasheet, certificate applicability and sample lead time before public final publication.
Related Resources
Product Hub
Browse all products
Solutions
Project solutions
Applications
By building type
Guides
Buying & spec guides
Similar Products
BS-SLE620 LED Street Light
Post-top or side-entry LED street light with T2-M/T3-M optics, IP66 protection and NEMA/ZHAGA accessory options.
BS-FL20-B Narrow Beam LED Flood Light
FL20-B narrow-beam flood light for outdoor projects requiring controlled beam angles and project-specific aiming.
Magic Color Strip
Pixel RGB Color Strip Manufacturer

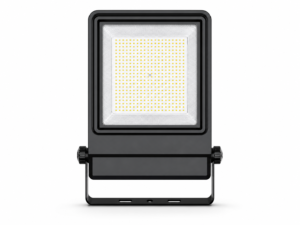

BS-FL15 LED Flood Light
