LED Strip Lights

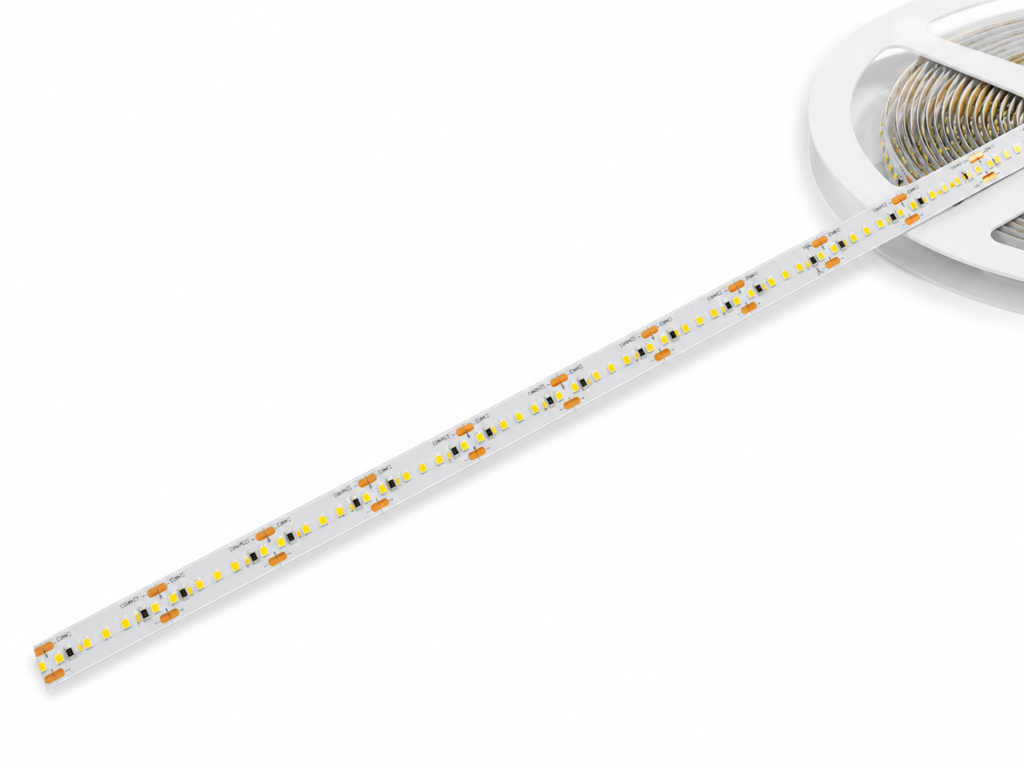

Besenled 2216 High Density LED Strip Light Series
When should a Besenled 2216 high-density strip be used instead of standard SMD strip?
Besenled 2216 variants include 120, 180, 240 and 300 LEDs/m options, 12V/24V or 24V options, 8mm/10mm PCB widths and 1800K-7000K CCT coverage depending on model.
- Protection
- Confirm for selected configuration
Final specifications, certificates, control compatibility, MOQ and delivery terms are confirmed against the selected configuration and destination market.
Decision summary
What buyers should know
- Use this page as an RFQ-ready product-family page; select exact SKU by voltage, LED density, PCB width, CCT/CRI, IP process and run length.
- Catalogue values are treated as Besenled source facts; peer references are not used as Besenled test evidence.
- Items marked needs_confirmation require final datasheet, certificate or sales confirmation before public final publication.
Buyer fit
Where this product fits—and where it does not
Use these boundaries before comparing detailed models. Project drawings and the selected SKU remain the final specification basis.
Best for
- Architectural linear lighting Flexible strip format supports profile, cove and cabinet integration.
- OEM/ODM project specification Series-level variants help buyers compare voltage, density, PCB width and light output before RFQ.
- Distributor product selection The page groups close SKU variants into one indexable product-family record.
Confirm another option when
- Final purchasing without datasheet confirmation Some values depend on exact SKU, batch, IP process and LED bin.
- Outdoor exposed installation without IP process Bare strip applications need profile, coating, silicone or neon protection as required.
Technical selection
Specifications and available variants
Select the family or model first, then confirm drawings, photometric files, driver and market-specific compliance before order.
Mechanical
- Dimensions
- 8mm / 10mm PCB; 1.2mm slim thickness noted in catalogue
- Materials
- white flexible PCB
- IP rating
- Confirm for selected configuration
- Mounting
- profile or adhesive mounting
- Installation notes
- Recommended to confirm aluminum profile/diffuser for dense LED layouts.
Model and variant matrix
| Model / Variant | Power | Dimension | CCT | CRI | Efficacy | Lifespan |
|---|---|---|---|---|---|---|
| 2216-120-24V-8MM/10MM | 14.4W/m-16.8W/m rated; 19.2W/m max | 8mm or 10mm PCB | 1800K-7000K | Ra80+/Ra90+ | 1440-1790 lm/m typical flux | Confirm for selected configuration |
| 2216-180-12V/24V-10MM | 16.8W/m rated; 28.8W/m max | 10mm PCB | 1800K-7000K | Ra90+ | 1680-1890 lm/m typical flux | Confirm for selected configuration |
| 2216-240-12V/24V-10MM | 16.8W/m rated; 38.4W/m max | 10mm PCB | 1800K-7000K | Ra90+ | 960-1080 lm/m typical flux | Confirm for selected configuration |
| 2216-300-12V/24V-10MM | 16.8W/m rated; 48W/m max | 10mm PCB | 1800K-7000K | Ra90+ | 1680-1890 lm/m typical flux | Confirm for selected configuration |
Detailed specification reference
| Parameter | Value | Condition / Evidence |
|---|---|---|
| Input voltage | 12V/24V DC or 24V DC | by model catalog pages 13-14 |
| LED density | 120-300 LEDs/m | catalog pages 13-14 |
| PCB width | 8mm or 10mm | by model catalog pages 13-14 |
| CCT | 1800K-7000K | ten optional white light choices catalog pages 13-14 |
| CRI | Ra80+ / Ra90+ | by model catalog pages 13-14 |
| LED package thickness | 1.2mm | slim thickness stated catalog pages 13-14 |
Smart and project integration
Control compatibility
Control support is configuration-dependent. Driver, protocol, gateway, wiring, voltage and certification market must be reviewed together.
Compatible driver/controller depends on voltage, color type and dimming/control requirement.
Evidence and documents
Compliance, catalogues and specification evidence
Certificate applicability and document revision must match the ordered configuration and destination market.
Evidence notes
- Product family and listed variants are extracted from Besenled catalogue source pages. catalogue
- Peer reference is used only for market taxonomy and missing generic assumptions, not as product proof. Peer Reference
B2B procurement
Prepare a quote-ready request
Besenled confirms commercial terms after the product configuration, quantity, project schedule and target market are defined.
Customization scope
- MOQ
- Project-dependent; confirm by selected model and customization scope.
- Sample policy
- Samples can be quoted after confirming voltage, color/CCT, PCB width, waterproof/IP process and accessories.
- Warranty
- Product-dependent; confirm on quotation and final datasheet.
- Quote basis
- Rfq Required
Information needed for RFQ
- 1 Voltage and color/CCT/CRI requirementNeeded to select the correct strip variant and compatible driver/controller.
- 2 LED density, PCB width and length per runNeeded for power calculation, voltage drop, aluminum profile matching and accessory selection.
- 3 Installation environment and IP requirementNeeded to choose bare strip, coating, silicone sleeve, neon flex or profile protection.
- 4 Quantity, packaging and destination marketNeeded for MOQ, lead time and certificate coverage check.
Buyer questions
FAQ and source notes
- Last fact checked
- July 29, 2026
Should this product be selected by exact SKU or by project requirement?
Select by project requirement first: voltage, color/CCT, density, PCB width, IP/process, run length, profile and control method. Then confirm the exact SKU and datasheet.
Are peer-reference values final Besenled specifications?
No. Peer references are used only to classify common market options and missing generic context. Final specs need Besenled datasheet or sample confirmation.
What information is needed for an RFQ?
Voltage, CCT/color type, length, quantity, IP rating, profile/accessory requirement, controller/dimming method, certificate market and packaging requirement.
Next procurement step
Request a configuration review and quotation
Send the application, model or required performance, quantity, voltage, controls, destination market and target schedule.
